The special object "Rigid Link" is suitable for this:
Data Navigator → Special Objects → Rigid Link
The following three types are available:
- Line to line
- Line to surface
- Plane (suitable for stiffening planes)

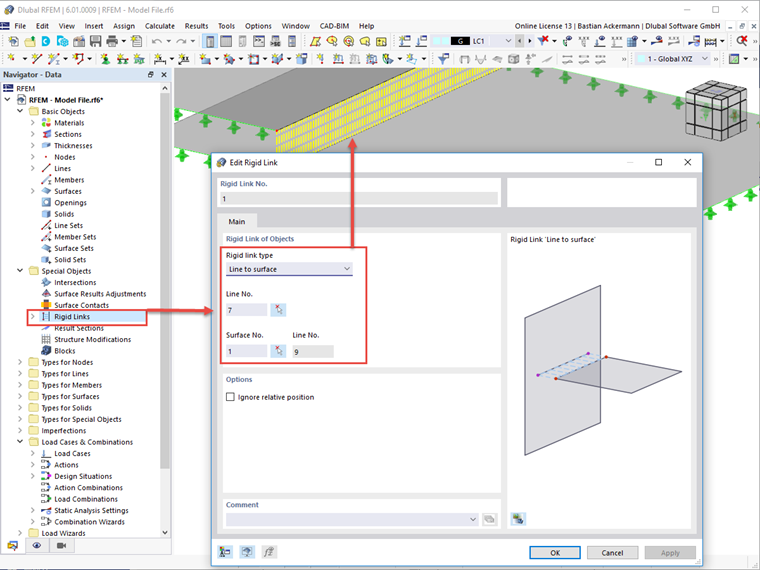

In this case, "Line to line" or "Line to surface" is suitable; see the image.
