Answer:

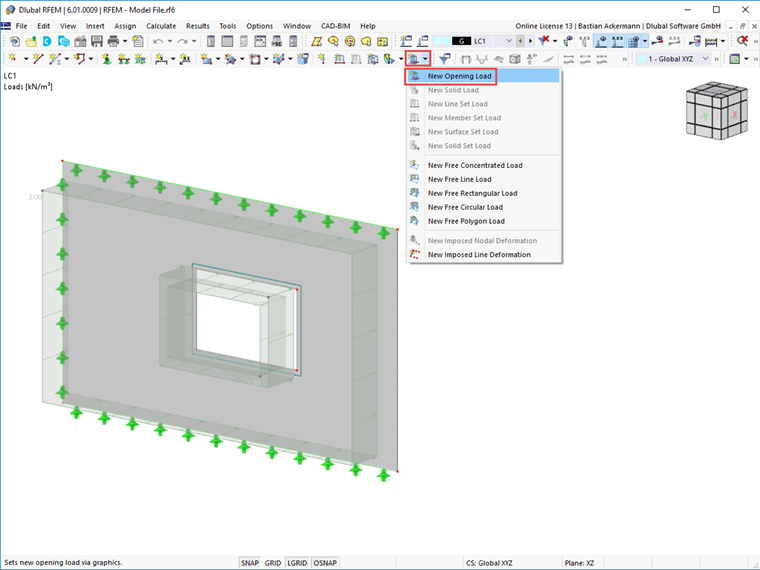

To do this, there is the opening load that you can define either via the menu bar (→ Insert → Loads → Opening Loads) or via the toolbar (drop-down menu for special loads; see the image).
