Label Position of Required Reinforcement for Surfaces

How can I adjust the label position of the required reinforcement for surfaces?

Answer:

The position of the label indicating the required amount of reinforcement for surfaces can be specified in the display properties under Results.

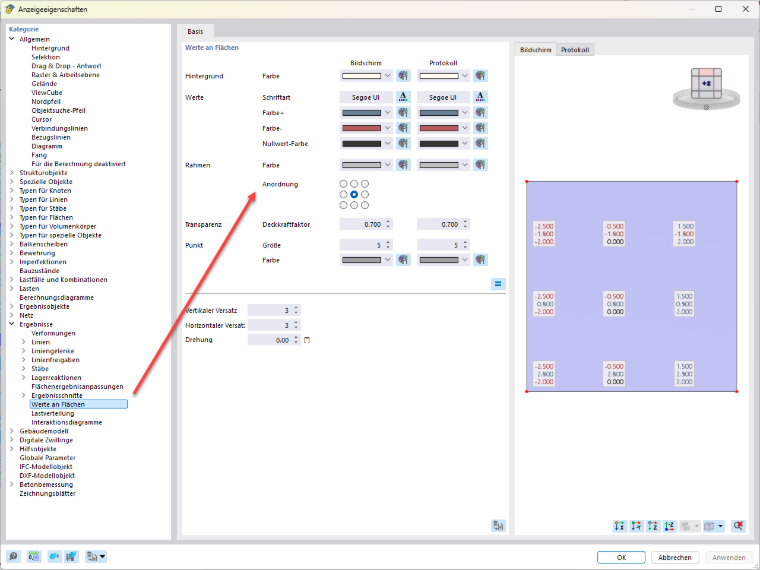

A dialog box for configuring the display of results on surface elements, with settings for font, colors, and layout.
Display Properties for Values on Surfaces

Note: The selected display setting is not applied when the values are displayed in the reinforcement direction.

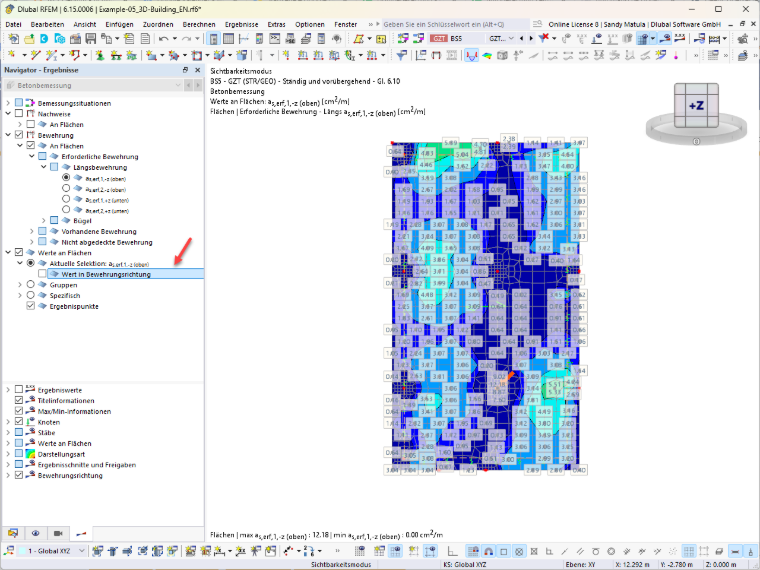

Graphical display of the required longitudinal reinforcement for surface elements in design software, showing a color scale and numerical values.
Result Graphic with Required Reinforcement on Surfaces
