Targeted display of results in RF-/FOUNDATION Pro
Technical Article
In RF‑/FOUNDATION Pro, you can carry out the design of a foundation at one or more nodes of the structure.
If you selected several nodes for the foundation design, the governing design criteria are shown for all nodes and all load cases in the “2.2 Governing Design Criteria” result window.

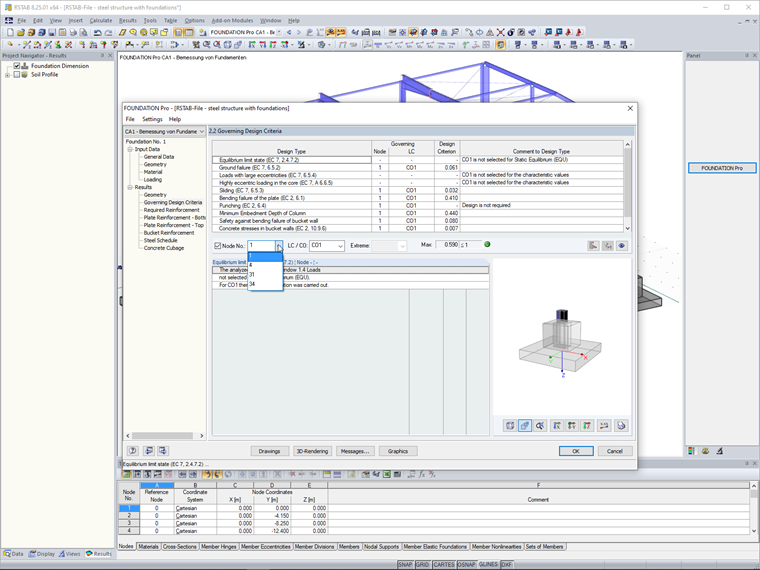

To show the results for a specific node or load case in this window, select in the “Show Criteria for” section the “Special node No.” or the “Load case / Combination” check box. Then, you can decide for which node and load case you want to show the results.
In case of designs for which the selected load case was not calculated, no result is shown. The message appears that the selected load case was not considered in this design.
Author
Dipl.-Ing. (FH) Paul Kieloch
Product Engineering & Customer Support
As technical support, Mr. Kieloch answers the questions of Dlubal Software customers, and is responsible for the development of the add-on modules for reinforced concrete structures.
Keywords
Foundation Bending design Result table Results dialog box Result nodes Pad footing Bucket Ground failure Position security Lateral buckling Eccentric loading Settlement
