Show Unselected Parts Transparently

The RF‑/JOINTS add‑on modules are equipped with a graphical window that shows all the structural components of the connection. There, you can use the mouse functions known from RFEM and RSTAB to zoom, move, or rotate the view.

Show Unselected Parts Transparently
Show Unselected Parts Transparently

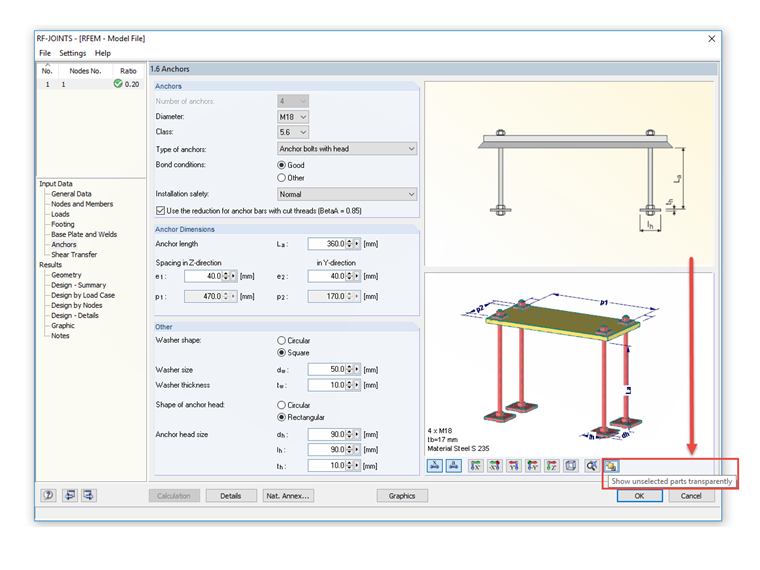

The [Show unselected parts transparently] button allows you to switch between two display types:

  • Show only structural components that are relevant for the current window
  • Show the entire connection with transparency mode for subordinate structural components
