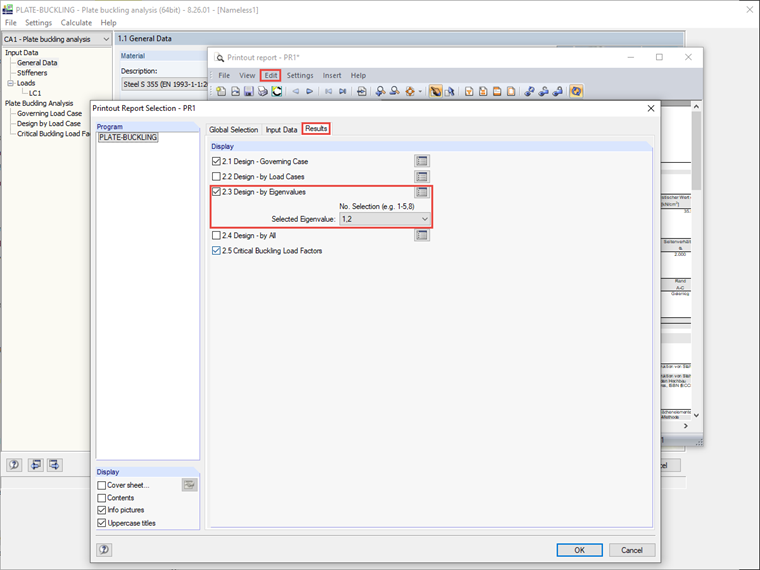

You simply define the respective numbers of the buckling modes in the selection field of the "Design - by Eigenvalues" option. Thus, it is not necessary to always print out all buckling analyses for all eigenvalues.
Selected Output of Eigenvalues, Including Buckling Analysis
You can use the selection options in the printout report to receive the detail results (in short or long form) to illustrate the individual buckling modes with the relevant buckling analysis.
