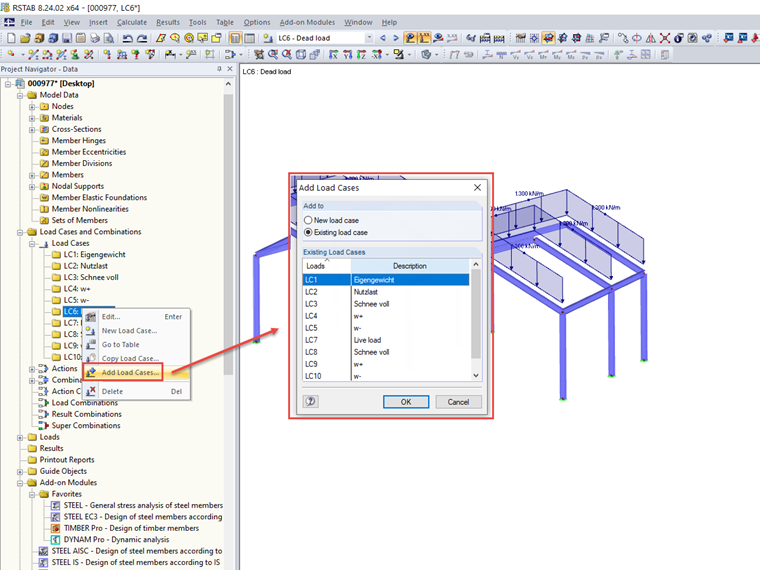

If necessary, you can combine these load cases with the "Add Load Cases" function. Then, you can simply delete the rest of the attached load cases.
Add Load Cases
If you want to import a block with previously saved loads into an existing model, the load cases are not integrated into the existing load cases, but are added to the existing ones.
