Taking Snow Overhang into Consideration

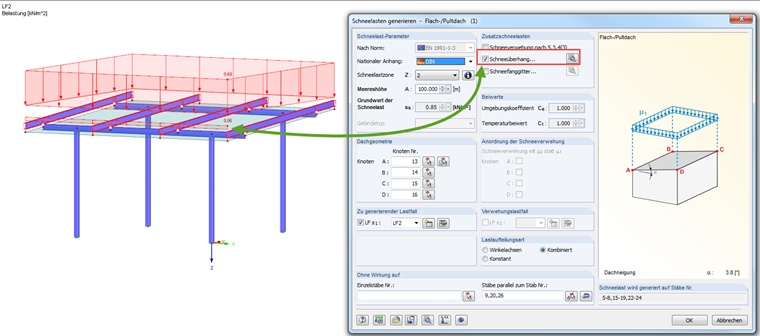

Bei der Funktion "Schneelasten generieren" besteht die Möglichkeit der Berücksichtigung des Schneeüberhangs. Die Last des Schneeüberhangs wird dabei mittels einer Streckenlast beziehungsweise mehrerer Knotenlasten automatisch an der Dachtraufe angesetzt.
Author
Mr. Baumgärtel provides technical support for Dlubal Software customers.
