RF-/STEEL Fatigue Members | Results

Product Feature

After the calculation, the module displays results in clearly arranged result windows. All intermediate values (for example governing internal forces, adjustment factors etc.) can be included in order to make the design more transparent. The results are listed by load case, cross-section, member, and set of members.

If the analysis fails, the relevant cross-sections can be modified in an optimization process. It is also possible to transfer the optimized cross-sections to RFEM/RSTAB for a new calculation.

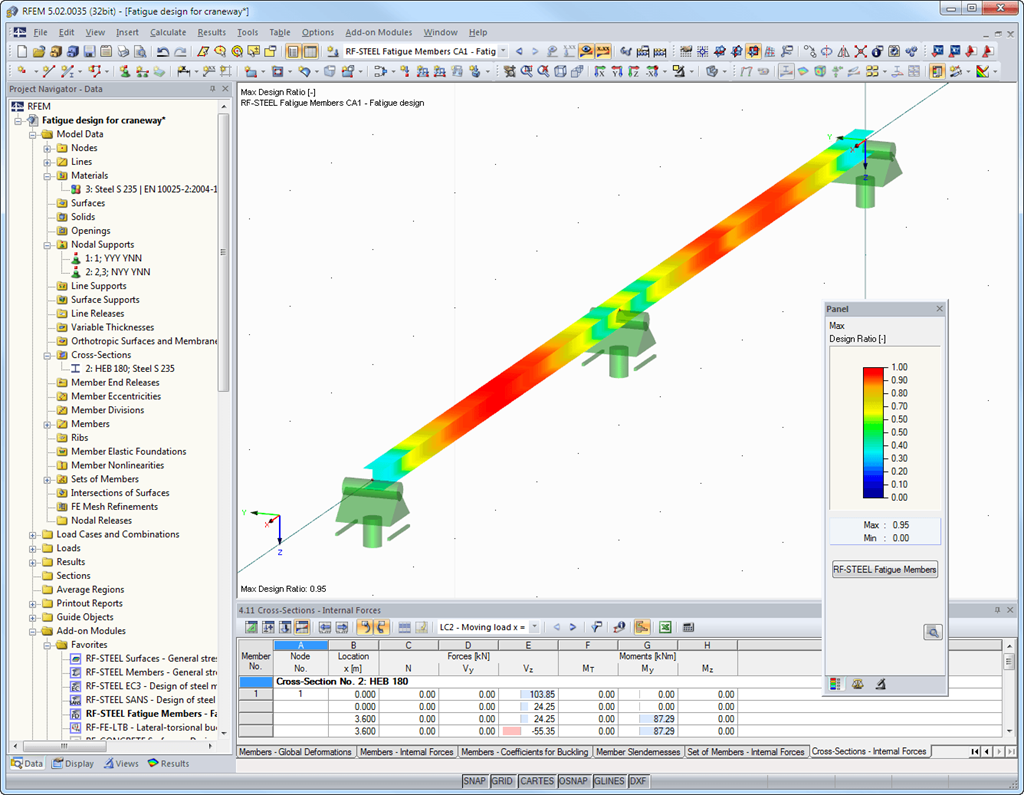

Design ratio is represented with different colors in the RFEM/RSTAB model. In this way, you can quickly recognize critical or oversized areas of the cross-section. Furthermore, result diagrams displayed on the member or set of members ensure targeted evaluation.

In addition to input and result data including design details shown in tables, you can add any graphic into the printout report. In this way, a comprehensible and clearly arranged documentation is guaranteed. You can select the report contents and results extent specifically for the individual designs.

RFEM Steel and Aluminium Structures
RF-STEEL Fatigue Members 5.xx

Add-on Module

Fatigue design of members and sets of members according to EN 1993-1-9

Price of First License
1,120.00 USD
