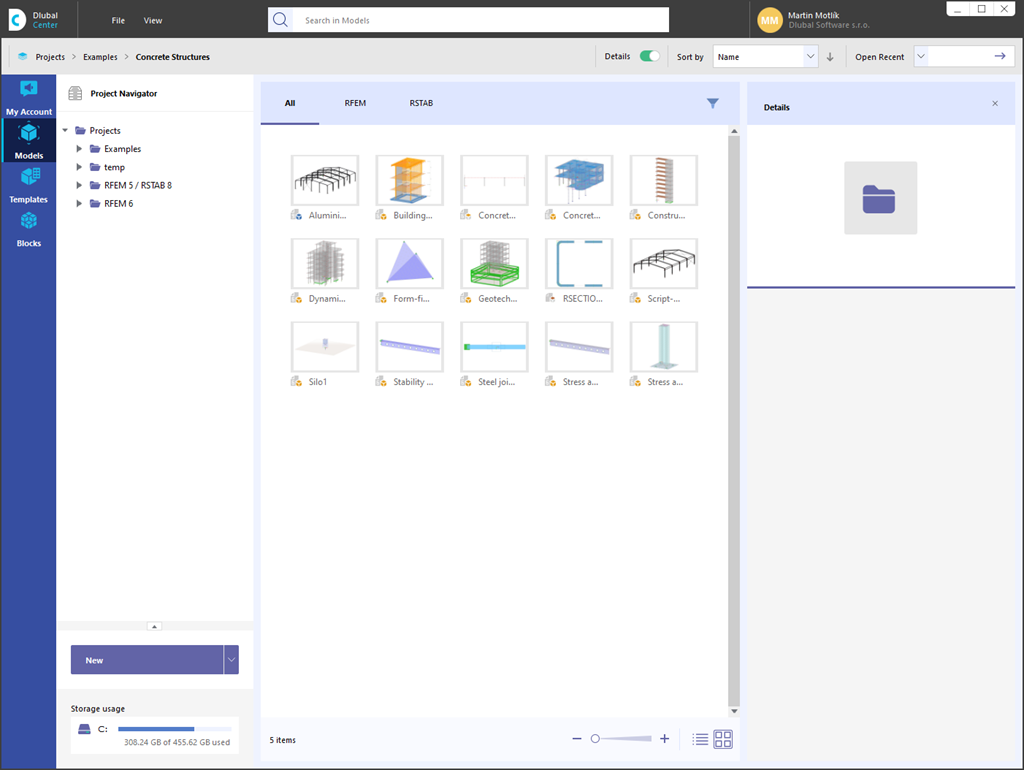

Always keep track of things: The project navigator manages your projects and models of the Dlubal applications in a central location. Have the models displayed clearly in a list form or with a preview image. Furthermore, the program shows you detailed information as a preview, such as file size, model data, modification date, and so on.
