Graphical Display of Contact Stresses

In the Steel Joints add-on, you can display the contact stresses under base plates graphically in the result window of the steel joint model.

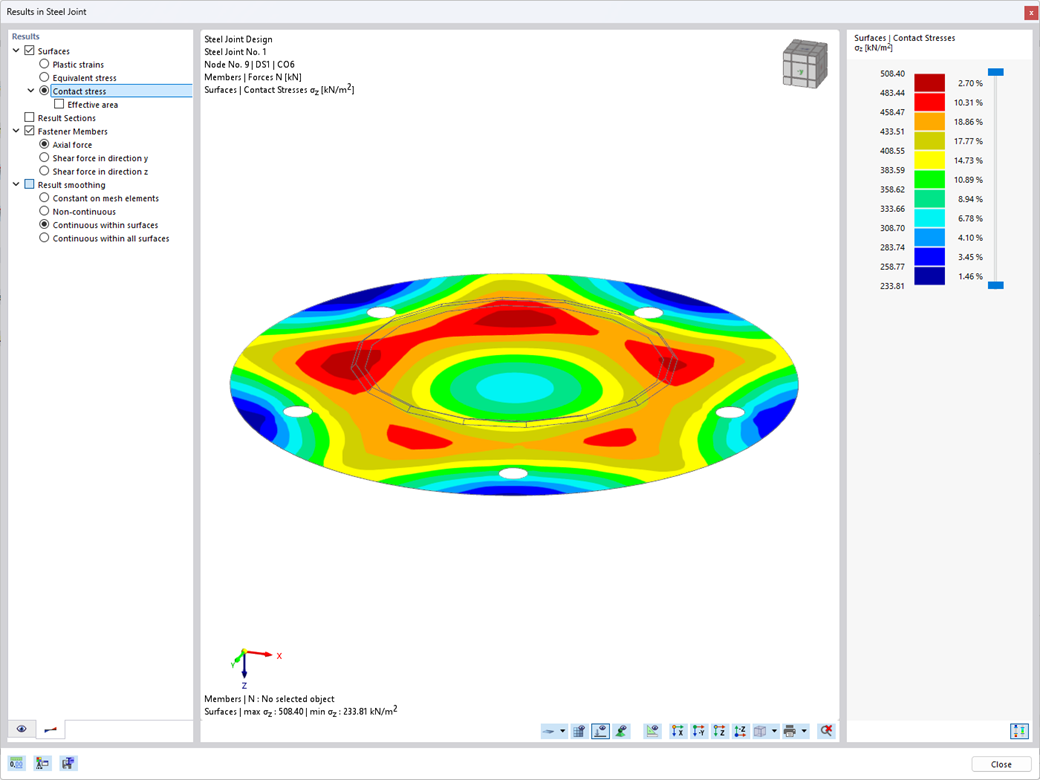

Color-Coded Numerical Values of Stress Distribution on Underside of Base Plate
Output of Contact Stress Under Base Plate
;
