The model of a steel membrane structure integrates cable bracing to realize sophisticated membrane solutions. It was developed specifically for the FEA software RFEM and presents in a practical way the use of CFD-based wind simulations. In the free webinar on March 17, 2020, relevant wind load concepts are presented.
Model Used in
Downloads

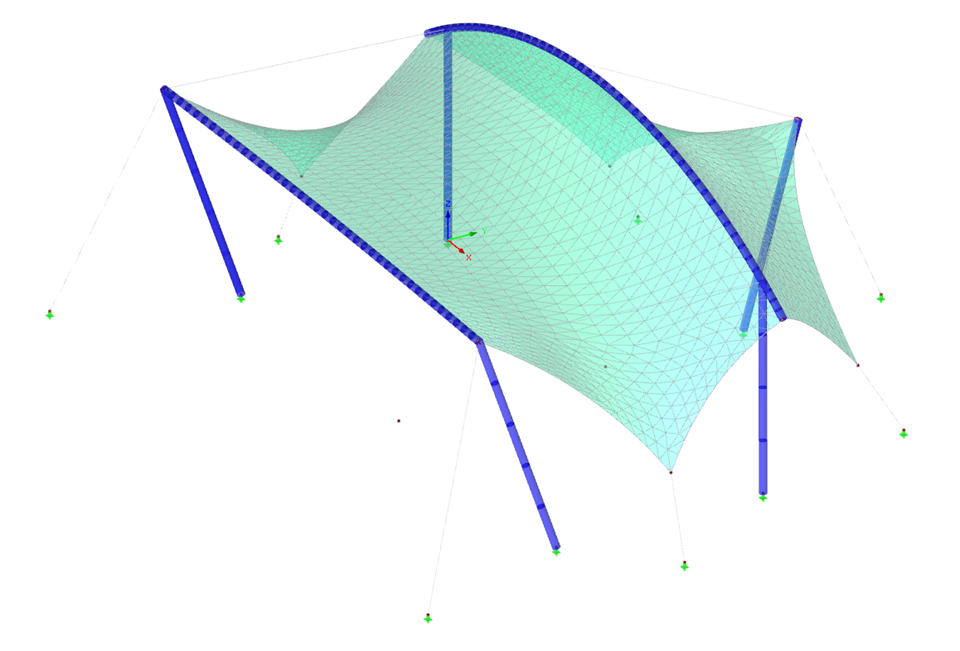

Steel Membrane Structure with Cable Guying
No Download Possible
Customer Project / View Only
| Number of Nodes | 28 |
| Number of Lines | 28 |
| Number of Members | 28 |
| Number of Surfaces | 2 |
| Number of Load Cases | 3 |
| Number of Load Combinations | 8 |
| Number of Result Combinations | 1 |
| Total Weight | 5.960 t |
| Dimensions (Metric) | 33.674 x 24.178 x 17.174 m |
| Dimensions (Imperial) | 110.48 x 79.32 x 56.35 feet |
| Program Version | 5.23.01 |
