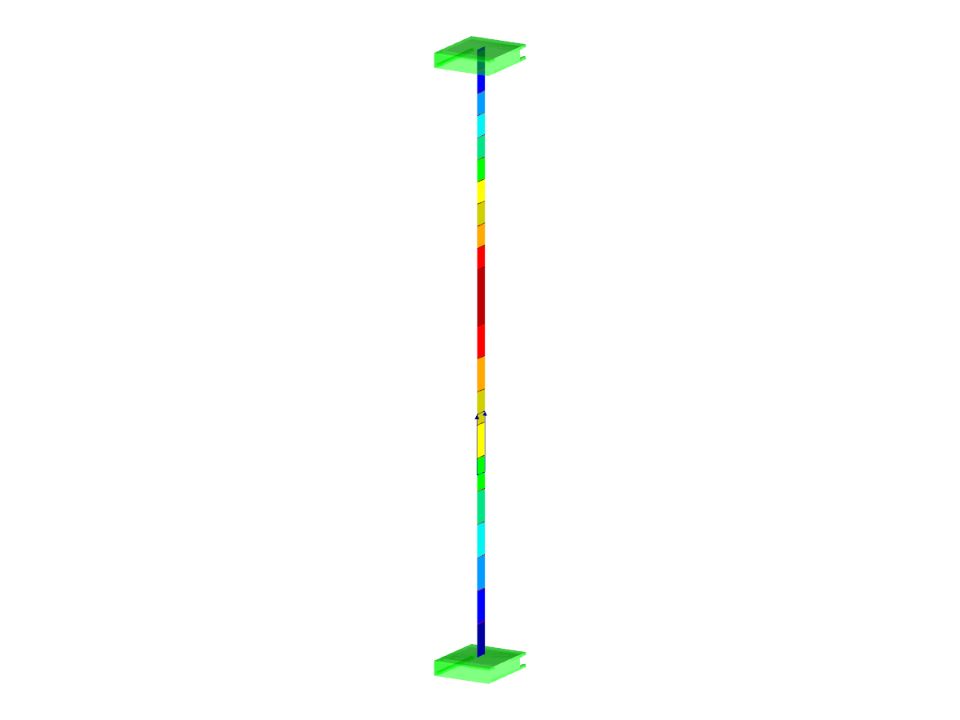

A three-dimensional block, made of elastic-plastic material with hardening, is fixed on both ends. The block's middle plane is subjected to the pressure load. The surface of plasticity is described according to the Tsai‑Wu plasticity theory.
Verification Example 000013 | 3
Number of Nodes | 6 |
Number of Lines | 7 |
Number of Surfaces | 2 |
Number of Load Cases | 1 |
Dimensions | 1.64 x 1.64 x 8.2 feet |
Program Version | 5.07.03 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
