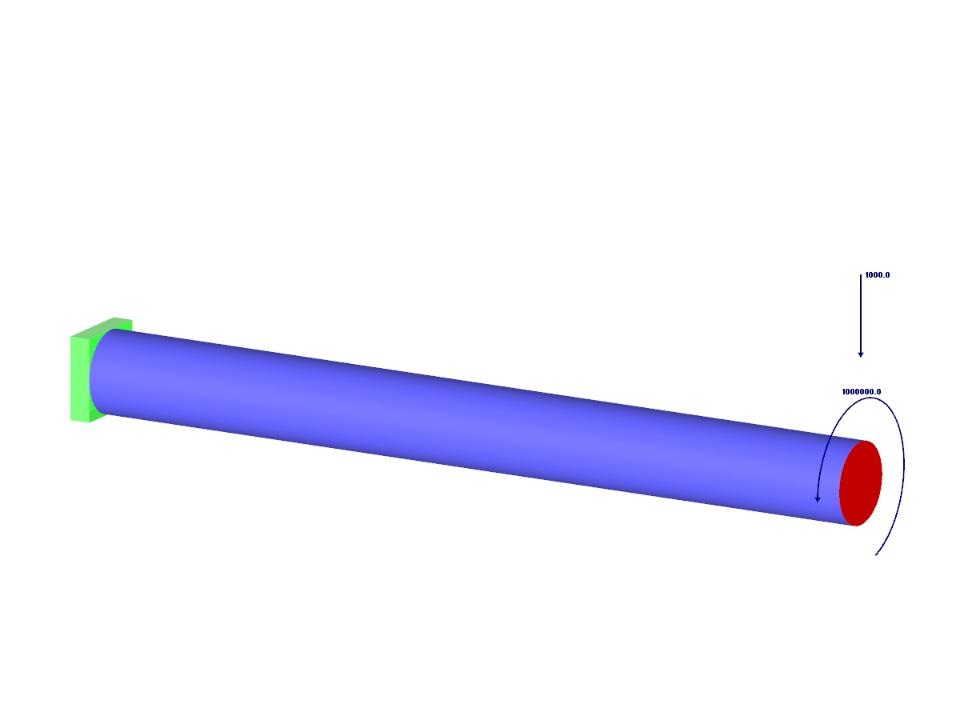

A cantilever with a circular cross‑section is loaded by a concentrated bending force and torque. This verification example aims to compare the reduced stress according to the von Mises and Tresca theories.
Verification Example 000075 | 1
| Number of Nodes | 2 |
| Number of Lines | 1 |
| Number of Members | 1 |
| Number of Load Cases | 1 |
| Total Weight | 0.008 tons |
| Dimensions | 2.46 x 1.64 x 1.64 feet |
| Program Version | 5.07.04 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
