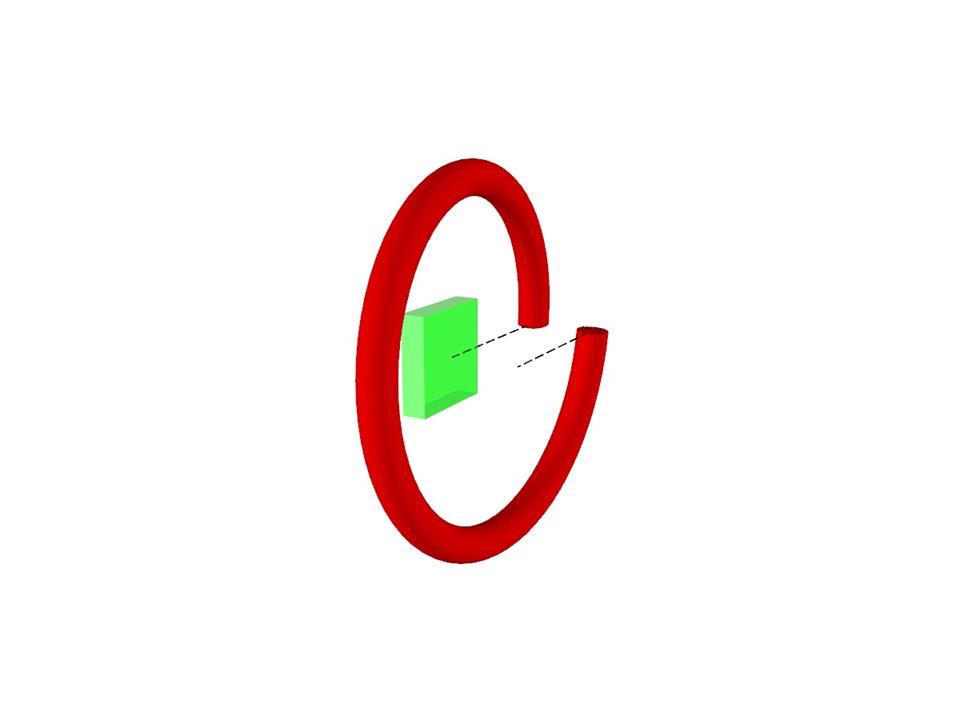

Closely coiled helical spring is loaded by a compression force. The spring has a middle diameter D, the wire diameter d, and it consists of i turns. The total length of the spring is L. Determine the total deflection of the spring for the member model and one‑turn deflection for the solid model.
Verification Example 000082 | 2
| Number of Nodes | 11 |
| Number of Lines | 13 |
| Number of Members | 8 |
| Number of Surfaces | 3 |
| Number of Solids | 1 |
| Number of Load Cases | 1 |
| Total Weight | 0.000 tons |
| Dimensions | 0.25 x 0.25 x 0.25 feet |
| Program Version | 5.12.00 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
