Verification Example 000105 | 2
  • Description
  • Reviews (0)

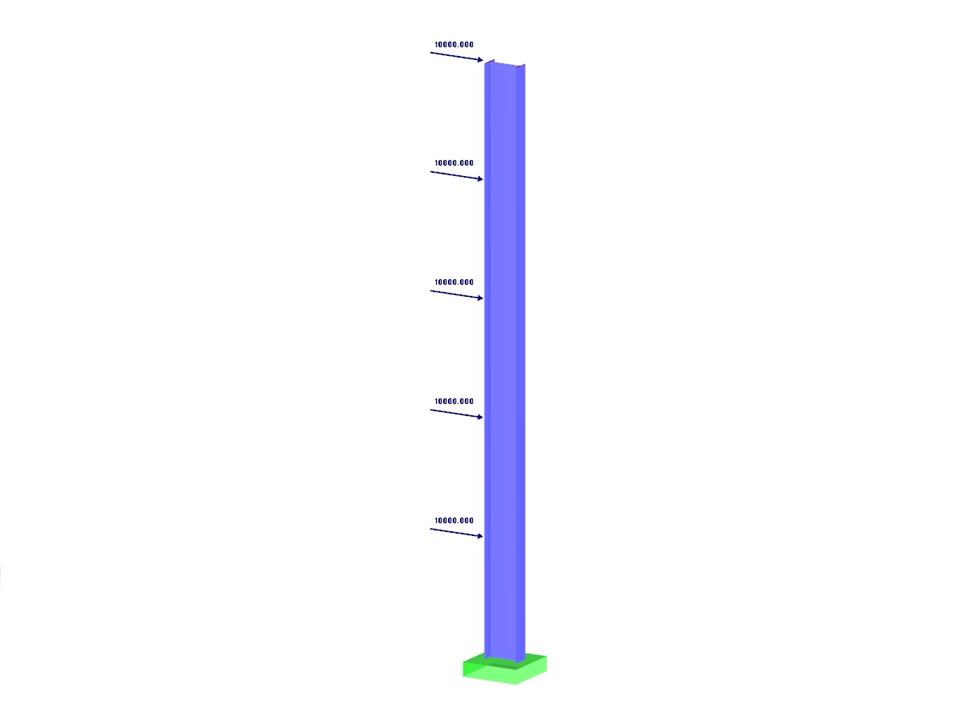

A cantilever beam with an I-beam cross-section of length L is defined. The beam has five mass points with masses m acting in the X-direction. The self-weight is neglected. The frequencies, the mode shapes, and the equivalent loads of this 5-DOF system are analytically calculated and compared with results from RSTAB and RFEM.

Model Used in
Overall
0 out of 5 stars
This page has 0 user ratings.
5 star
4 star
3 star
2 star
1 star
(0)
0 out of 5 stars
5 star 0
4 star 0
3 star 0
2 star 0
1 star 0

Verification Example 000105 | 2

Number of Nodes 6
Number of Members 5
Number of Load Cases 6
Number of Result Combinations 1
Total Weight 0.211 tons
Dimensions (Metric) 0.313 x 0.313 x 5.156 m
Dimensions (Imperial) 1.03 x 1.03 x 16.92 feet
Program Version 8.05.00

You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
