A cantilever of the rectangular cross‑section has a mass at its end. Furthermore, it is loaded by an axial force. Calculate the natural frequency of the structure. Neglect the self‑weight of the cantilever and consider the influence of axial force for the stiffness modification.
Model Used in

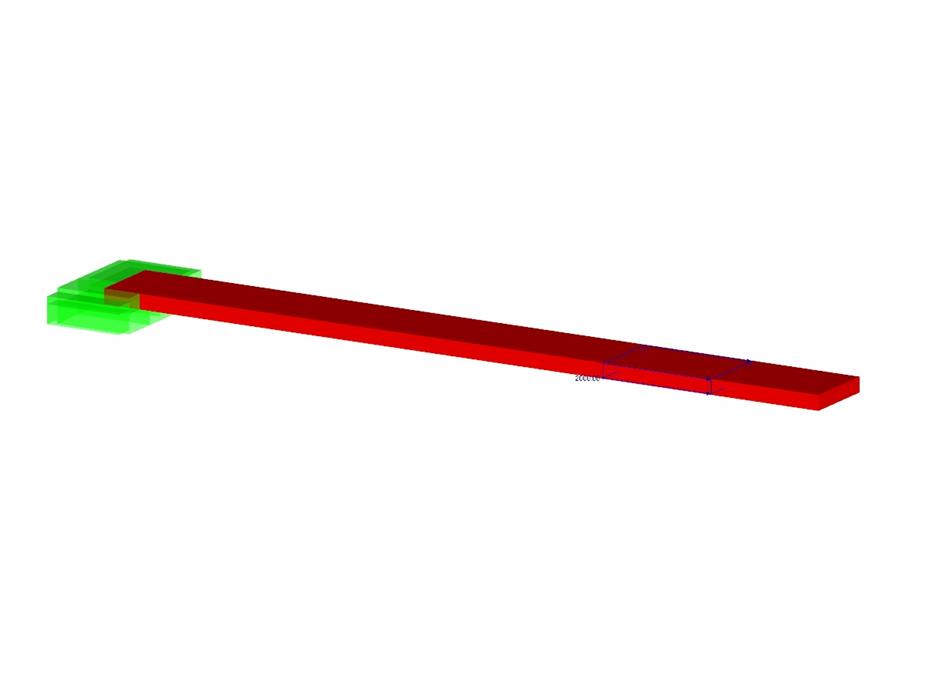

Verification Example 000115 | 4
| Number of Nodes | 10 |
| Number of Lines | 13 |
| Number of Surfaces | 6 |
| Number of Solids | 1 |
| Number of Load Cases | 1 |
| Dimensions (Metric) | 0.500 x 0.050 x 0.010 m |
| Dimensions (Imperial) | 1.64 x 0.16 x 0.03 feet |
| Program Version | 5.07.15 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
