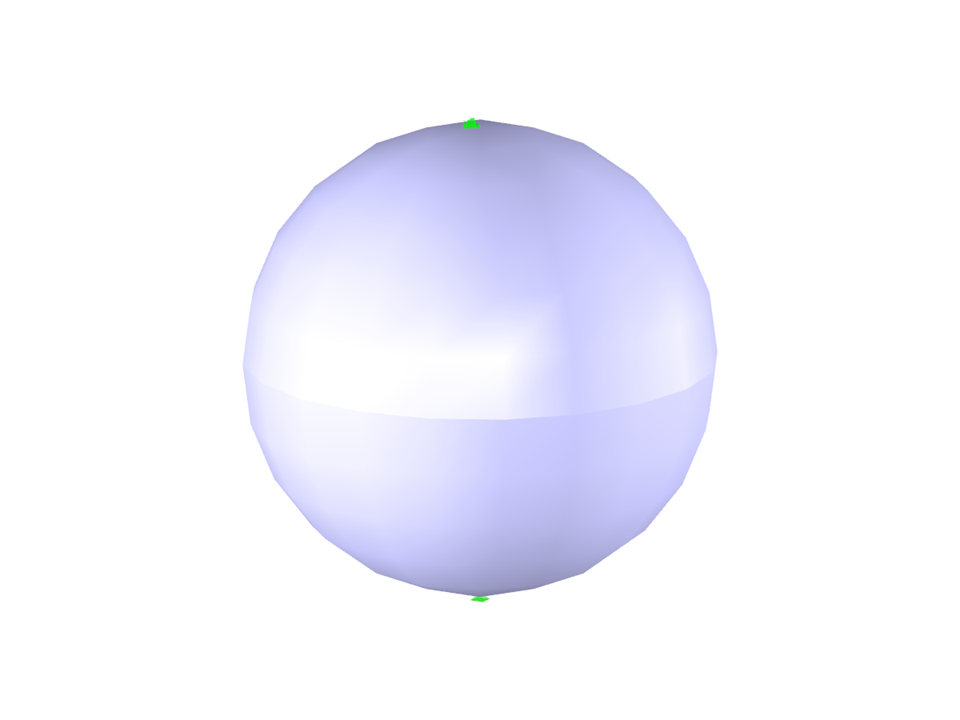

A spherical balloon membrane is filled with gas with atmospheric pressure and defined volume (these values are used for FE model definition only). Determine the overpressure inside the balloon due to the given isotropic membrane prestress. The add-on module RF-FORM-FINDING is used for this purpose. Elastic deformations are neglected both in RF-FORM-FINDING and in analytical solution, self-weight is also neglected in this example.
Verification Example 000206 | 1
| Number of Nodes | 9 |
| Number of Lines | 5 |
| Number of Surfaces | 2 |
| Number of Solids | 1 |
| Number of Load Cases | 2 |
| Total Weight | 0.038 tons |
| Dimensions | 17.98 x 17.93 x 16.44 feet |
| Program Version | 5.16.00 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
