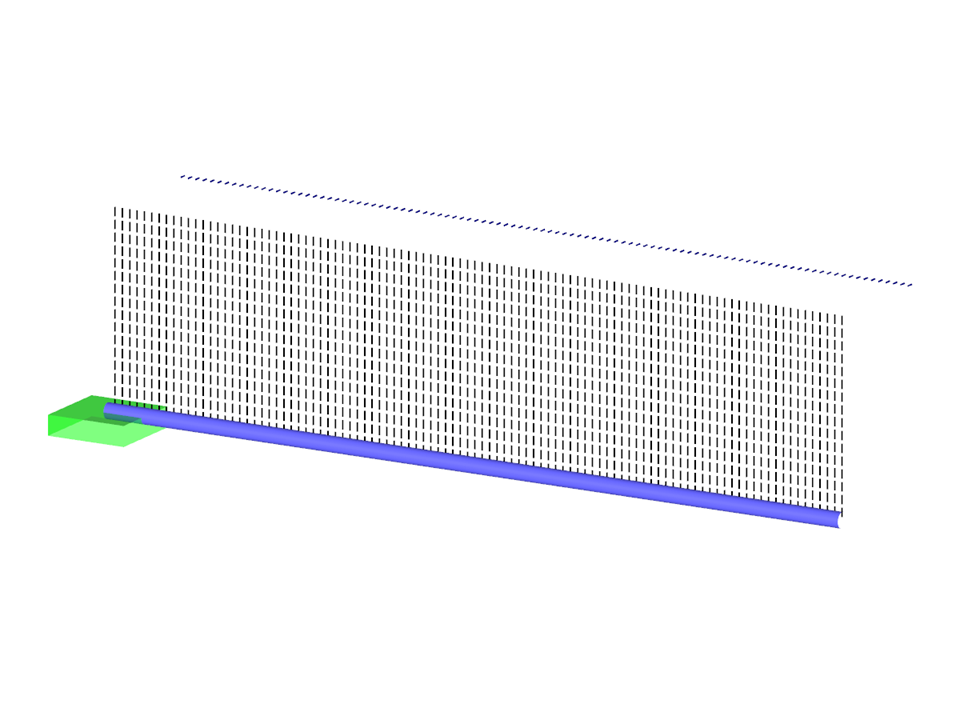

A console made of a round bar is loaded using an eccentric uniform load. Determine the maximal deflection and maximal twist of the console using geometrically linear analysis.
Model Used in
Verification Example 000211 | 2
| Number of Nodes | 201 |
| Number of Lines | 200 |
| Number of Members | 200 |
| Number of Load Cases | 1 |
| Total Weight | 0.002 tons |
| Dimensions (Metric) | 1.102 x 0.205 x 0.352 m |
| Dimensions (Imperial) | 3.62 x 0.67 x 1.15 feet |
| Program Version | 5.19.01 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
