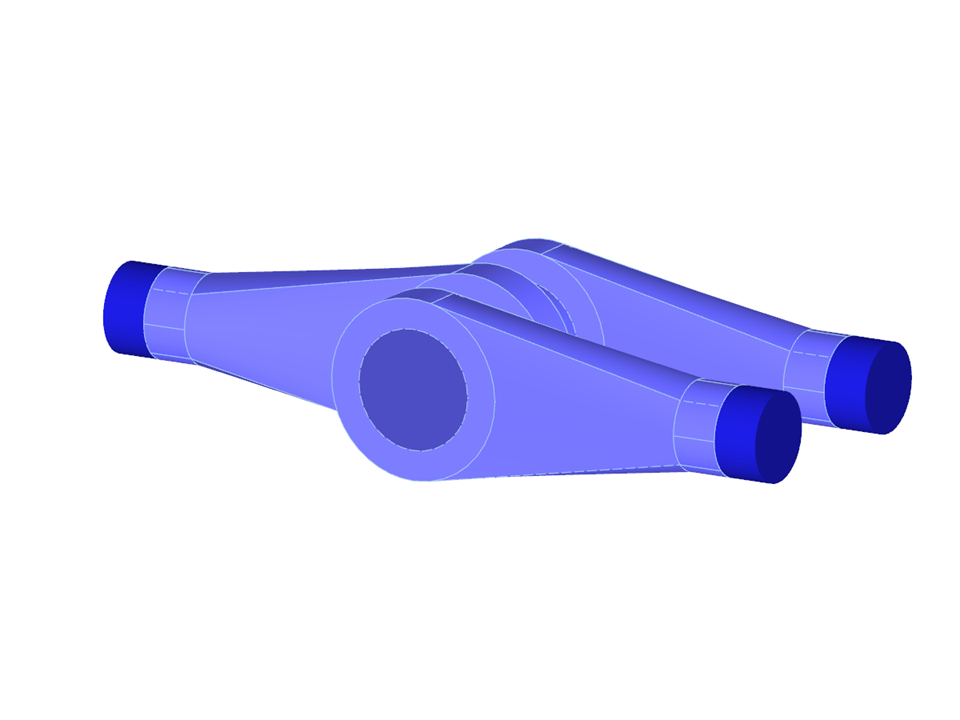

Connection in Steel Structure Using Solid Elements and Contact
| Number of Nodes | 219 |
| Number of Lines | 178 |
| Number of Members | 29 |
| Number of Surfaces | 75 |
| Number of Solids | 9 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 4 |
| Number of Result Combinations | 4 |
| Total Weight | 0.030 tons |
| Dimensions | 3.35 x 2.1 x 1.64 feet |
| Program Version | 5.21.00 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
