In October 2013, the "Walsersteg", a bridge for pedestrians and cyclists built across the Loisach River, opened in the south of the old town of Wolfratshausen in Germany. The bridge connects the existing traffic routes on both sides of the Loisach River. The uncovered bridge spans the Loisach without columns and has a pylon guyed on one side. The structure is 9.84 ft wide and has a span of 150.92 ft.
Ingenieurbüro Robert Buxbaum, Wolfratshausen, Germany
www.ib-buxbaum.de

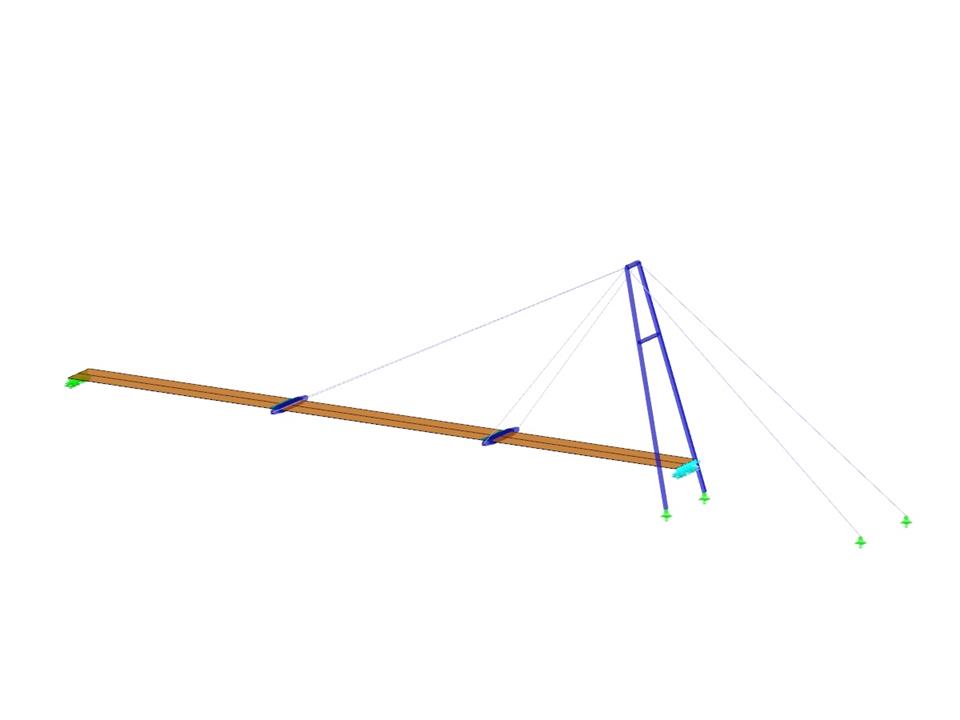

RFEM model of pylon bridge with displayed deformation (© IB Robert Buxbaum)
Ingenieurbüro Robert Buxbaum, Wolfratshausen, Germany
www.ib-buxbaum.de
RFEM model of pylon bridge with displayed deformation (© IB Robert Buxbaum)
Pylon Bridge
No Download Possible
Customer Project / View Only
| Number of Nodes | 40 |
| Number of Lines | 50 |
| Number of Members | 28 |
| Number of Surfaces | 3 |
| Number of Load Cases | 13 |
| Number of Load Combinations | 38 |
| Number of Result Combinations | 2 |
| Total Weight | 40.185 tons |
| Dimensions (Metric) | 61.500 x 6.500 x 15.750 m |
| Dimensions (Imperial) | 201.77 x 21.33 x 51.67 feet |
| Program Version | 5.02.00 |
