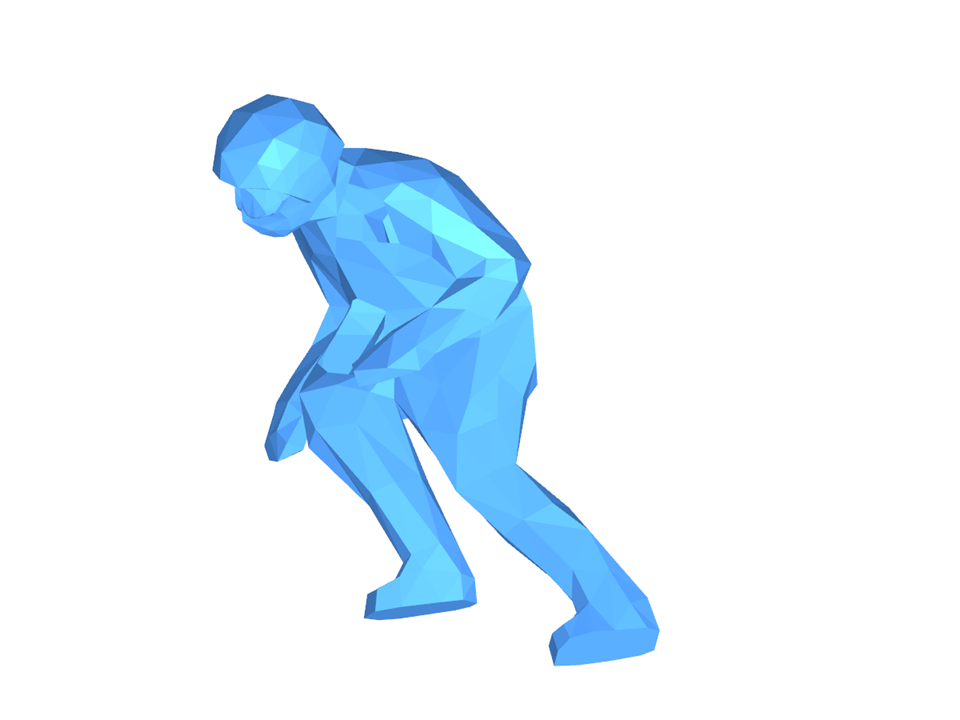

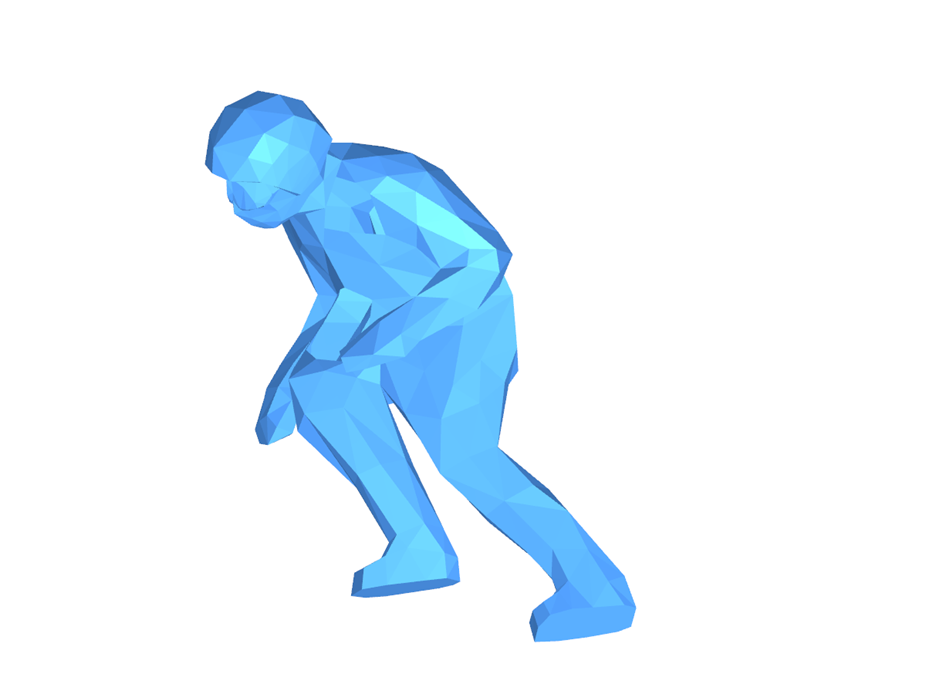

The 19 m high, 18 ton "Edy" wooden sculpture was the symbol of the 2017 Ski World Championships in St. Moritz. The structure, made of over 600 triangular 54 mm thick cross-laminated timber panels, was calculated with RFEM and the RF-LAMINATE and RF-COM add-ons. The internal forces were transferred to MS Excel using RF-COM for fastener design and stress analysis. The model accompanied various ceremonies, projections, dance, and climbing shows in Kulm Park. Static and FEM: [sblumer ZT GmbH](https://www.sblumer.com/) © sblumer ZT GmbH
Model Used in
Edy Wooden Sculpture – 2017 Ski World Cup
No Download Possible
Customer Project / View Only
| Number of Nodes | 547 |
| Number of Lines | 1402 |
| Number of Members | 1378 |
| Number of Surfaces | 639 |
| Number of Load Cases | 1 |
| Total Weight | 70,641 t |
| Dimensions (Metric) | 19.813 x 19.437 x 21.418 m |
| Dimensions (Imperial) | 65 x 63.77 x 70.27 feet |
| Program Version | 5.08.01 |
