Timber roof
Model Used in
- RFEM for Students | Part 3
- RFEM for Students | Part 3
- RFEM for Students | Part 3
- Eurocode 5 | Timber Structures According to DIN EN 1995-1-1
- Eurocode 5 | Timber Structures According to DIN EN 1995-1-1
- Eurocode 5 | Timber Structures According to DIN EN 1995-1-1
- Eurocode 5 | Timber Structures According to DIN EN 1995-1-1
- Eurocode 5 | Timber Structures According to DIN EN 1995-1-1

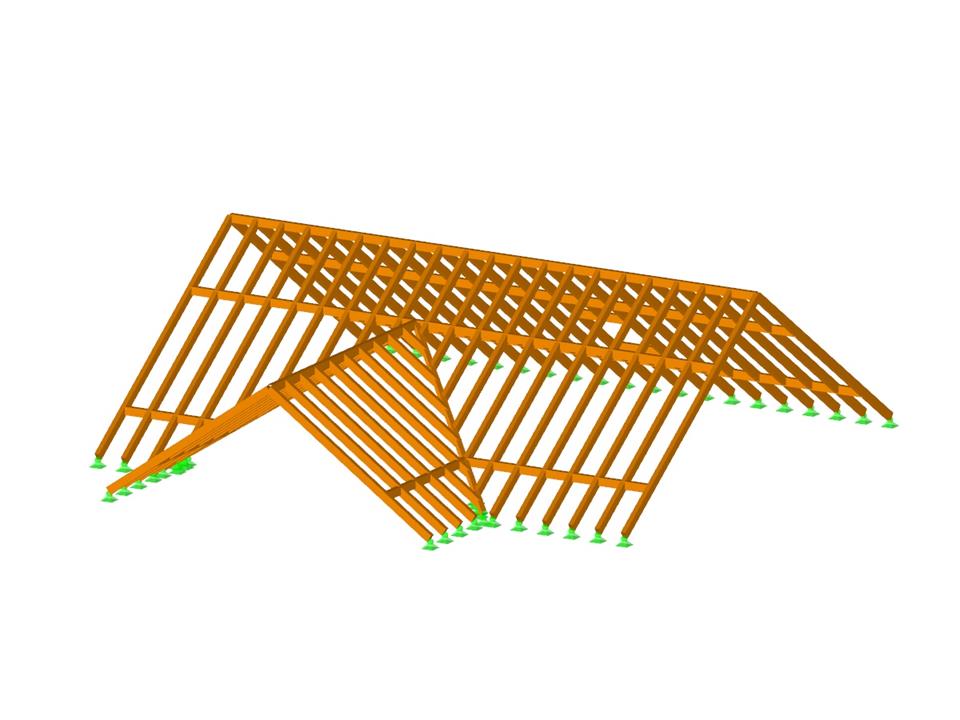

Timber Roof
| Number of Nodes | 547 |
| Number of Lines | 303 |
| Number of Members | 303 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 6.475 tons |
| Dimensions (Metric) | 13.990 x 4.282 x 14.690 m |
| Dimensions (Imperial) | 45.9 x 14.05 x 48.2 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
