With the RF‑/LIMITS add‑on module, you can compare the load‑bearing capacity of members, member ends, nodes, nodal supports, and surfaces (only in RFEM) by means of a defined ultimate load-bearing capacity. Furthermore, nodal displacements as well as cross-section dimensions can be checked.
Using this model, it was possible to compare the column bases with the maximum allowable forces specified by the manufacturer.
Model Used in

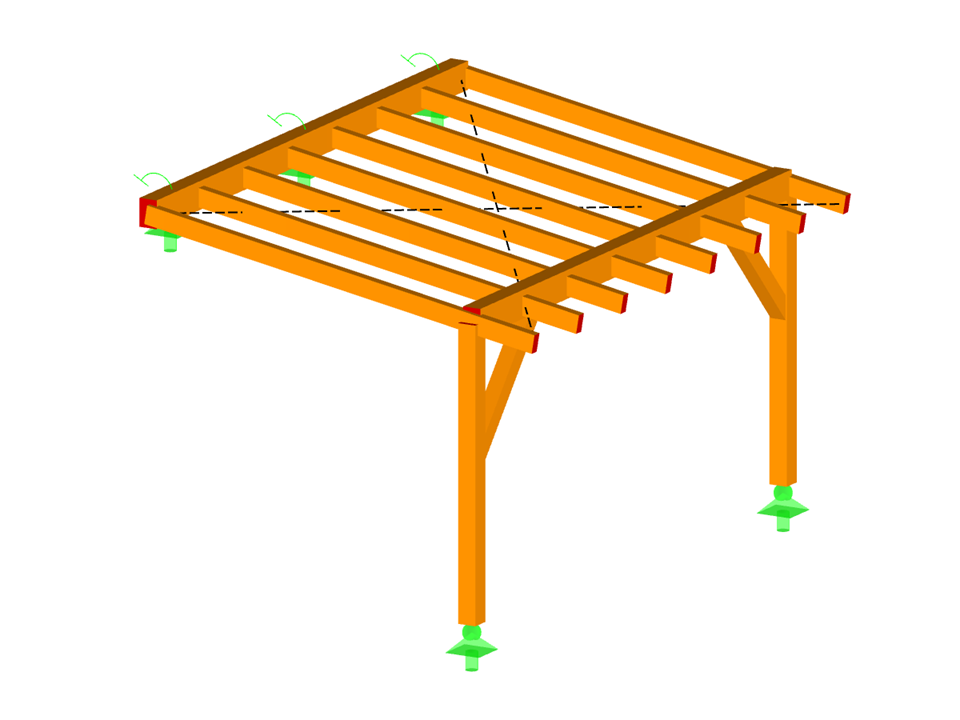

With the LIMITS module, it is possible to compare the ultimate limit state of members, member ends, nodes, nodal supports and surfaces (RFEM only) on the basis of a defined ultimate limit state. Furthermore, nodal displacements as well as cross-section dimensions can be checked. In this example, the column bases of a carport are to be compared with the maximum allowable forces specified by the manufacturer.
Disproportionate Collapse Prevention Analyses for Mid-rise Cross-laminated Timber Platform-type Buildings
I-joists in Timber - Discussion of current design practice and implementation in structural analysis software
The cross-section resistance design analyzes tension and compression along the grain, bending, bending and tension/compression as well as the strength in shear due to shear force.
The design of structural components at risk of buckling or lateral-torsional buckling is performed according to the Equivalent Member Method and considers the systematic axial compression, bending with and without compressive force as well as bending and tension. Deflection of inner spans and cantilevers is compared to the maximal allowable deflection.
Separate design cases allow for a flexible and stability analysis of members, sets of members, and loads.
Design-relevant parameters such as the stability analysis type, member slendernesses, and limit deflections can be freely adjusted.
