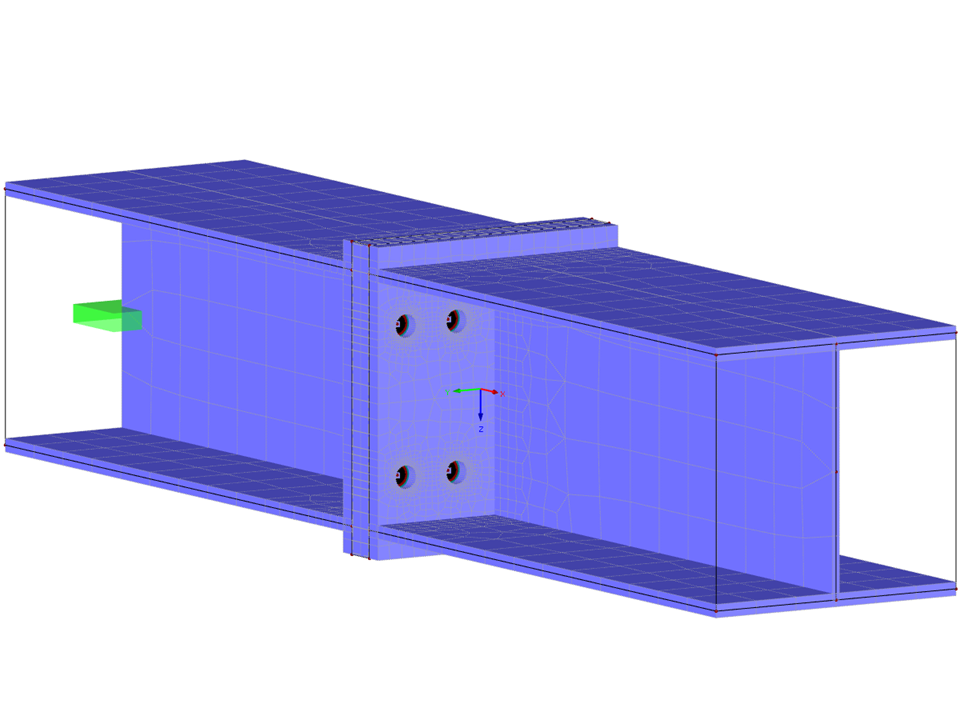

Parameterized FE Model for Designing Rigid End Plate Joints
Number of Nodes | 629 |
Number of Lines | 666 |
Number of Members | 585 |
Number of Surfaces | 22 |
Number of Solids | 1 |
Number of Load Cases | 3 |
Number of Load Combinations | 2 |
Total Weight | 0.112 tons |
Dimensions | 4.12 x 0.85 x 0.95 feet |
Program Version | 5.24.00 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
