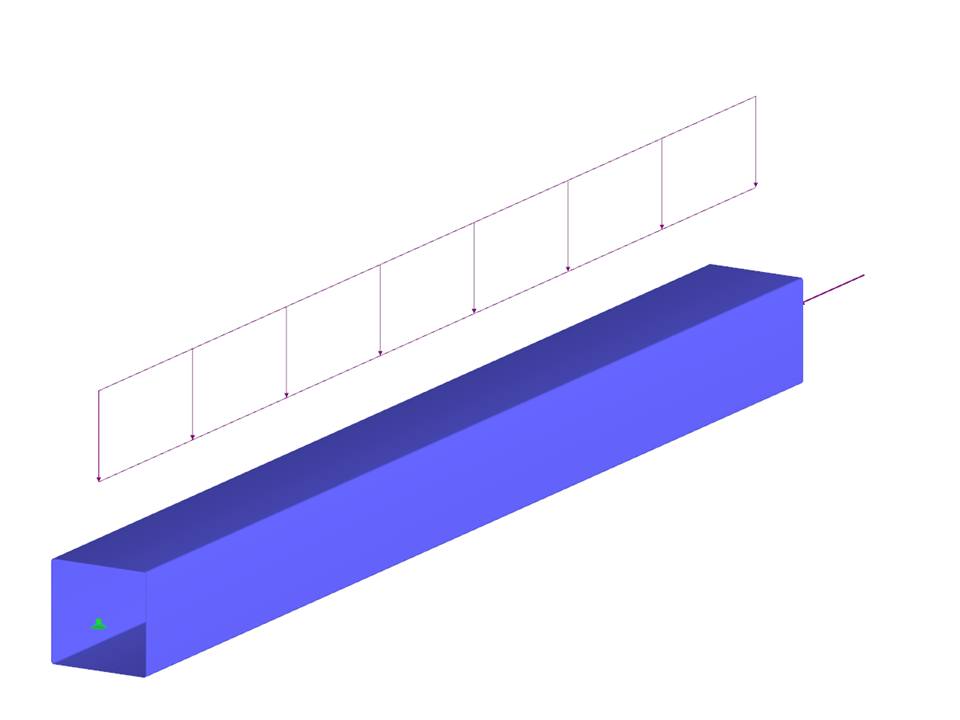

The model shows an HSS steel beam characterized by its precise profile and typical properties of HSS sections. It was developed for extensive calculations and simulations in steel construction. The representation includes all relevant geometric and material parameters. The attached image (https://www.dlubal.com/de/img/13038) visualizes the steel beam from a three-dimensional perspective.
Model Used in
HSS Steel Beam Model
| Number of Nodes | 2 |
| Number of Lines | 1 |
| Number of Members | 1 |
| Number of Load Cases | 1 |
| Total Weight | 0,024 t |
| Dimensions (Metric) | 0.119 x 3.167 x 0.119 m |
| Dimensions (Imperial) | 0.39 x 10.39 x 0.39 feet |
| Program Version | 5.13.01 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
