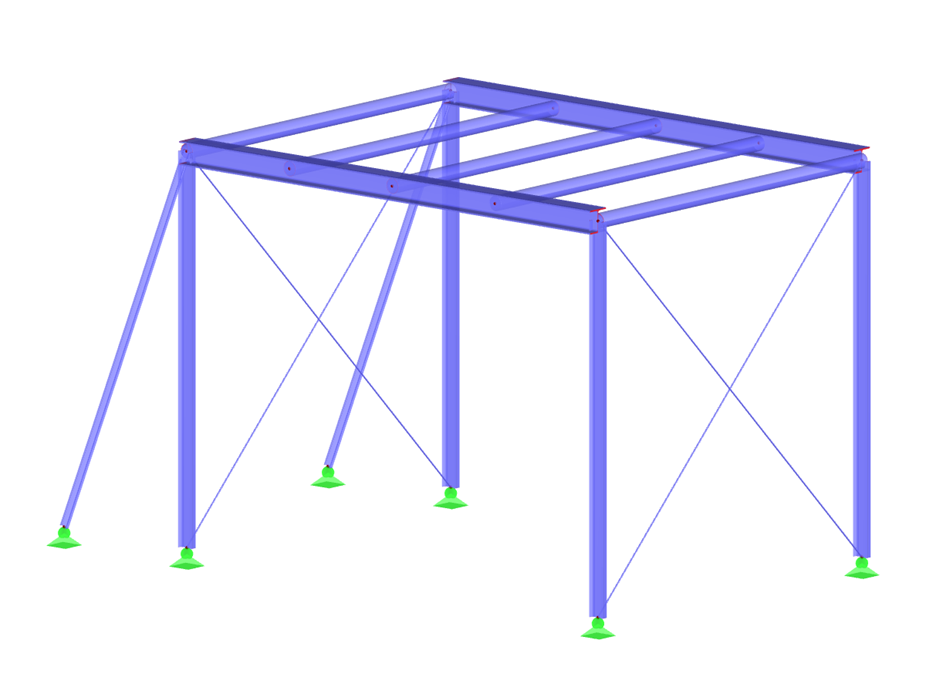

This model shows a 3D steel platform structured by two double-hinged frames with stage beams as trusses. The platform structure integrates seamlessly into complex structural projects and shows the efficient use of steel as a building material. The precise execution of the truss rods allows for improved stability and load-bearing capacity, which is ideal for industrial and commercial applications.
Model Used in
3D Steel Design with Two-Hinged Frame
| Number of Nodes | 16 |
| Number of Lines | 17 |
| Number of Members | 17 |
| Number of Load Cases | 2 |
| Total Weight | 2.753 t |
| Dimensions (Metric) | 9.012 x 5.313 x 5.156 m |
| Dimensions (Imperial) | 29.57 x 17.43 x 16.92 feet |
| Program Version | 5.23.02 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
