Lightweight Timber Structure
Model to Download

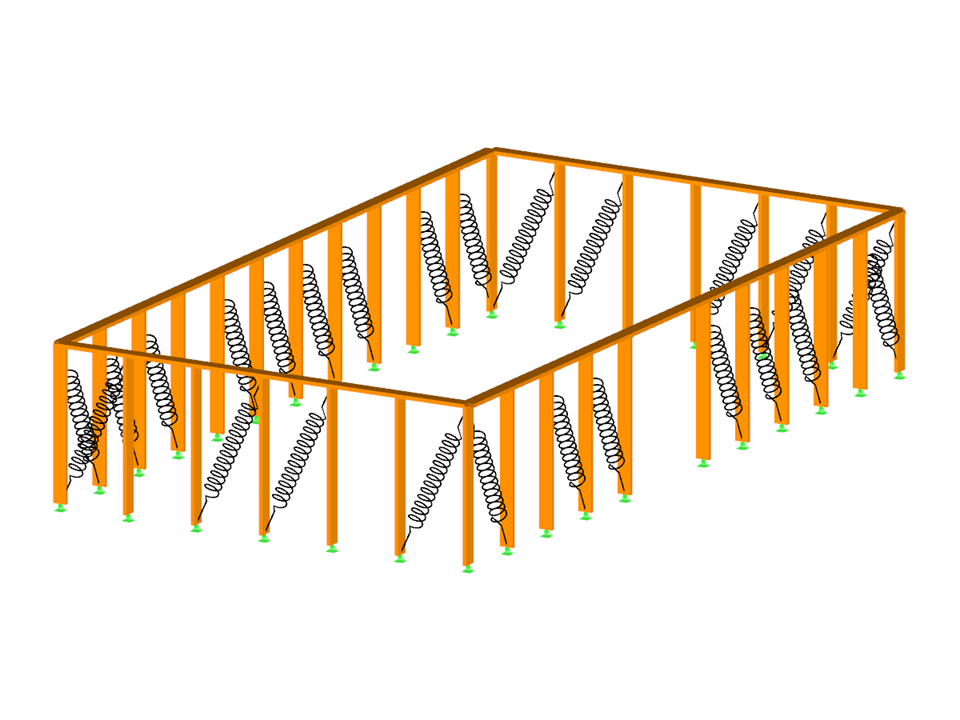

Model of the master thesis "Comparison with Respect to Load-Bearing Capacity of Two Structural Systems of Walls with Straw Bales Carried out 'in situ': Column System and Modified CUT System," associated with the results of the wall stiffness of the module built with the modified Cut structural system.
The stresses in the cross‑section of the member are calculated in the so‑called stress points. These points are set at such locations in the cross‑section, at which the extreme values for the stresses due to the loading types can occur in the material.
Model of the Final Master's Thesis "Comparative, with respect to the bracing capacity of two construction systems of straw bale walls made" in situ "
The cross-section resistance design analyzes tension and compression along the grain, bending, bending and tension/compression as well as the strength in shear due to shear force.
The design of structural components at risk of buckling or lateral-torsional buckling is performed according to the Equivalent Member Method and considers the systematic axial compression, bending with and without compressive force as well as bending and tension. Deflection of inner spans and cantilevers is compared to the maximal allowable deflection.
Separate design cases allow for a flexible and stability analysis of members, sets of members, and loads.
Design-relevant parameters such as the stability analysis type, member slendernesses, and limit deflections can be freely adjusted.
