Model to Download

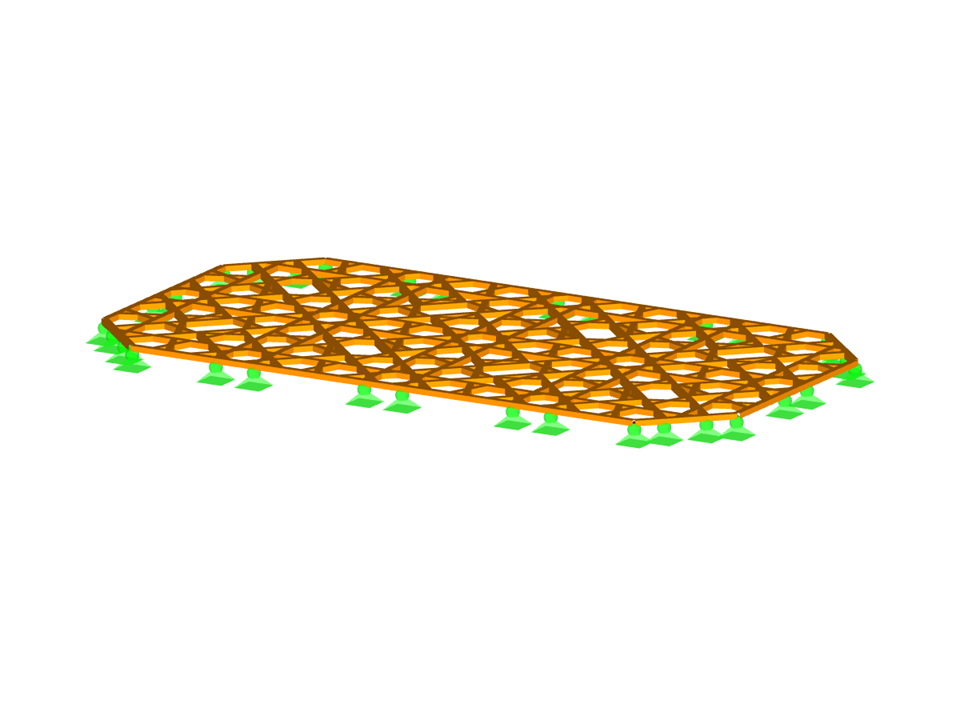

Timber panel for the master thesis about traditional craftsmanship with decorative timber framed structures
- Views 322x
- Downloads 42x
- Updated 30 December 2020
In this article, the adequacy of a 2x4 dimension lumber subject to combined bi-axial bending and axial compression is verified using RF-/TIMBER AWC add-on module. The beam-column properties and loading are based on example E1.8 of AWC Structural Wood Design Examples 2015/2018.
RFEM/RSTAB add-on module RF-/TIMBER SANS | Design of members made of timber according to SANS 10163 (South African standard)
RFEM/RSTAB add-on module RF-/TIMBER CSA | Design of members made of timber according to CSA 086 (Canadian standard)
The cross-section resistance design analyzes tension and compression along the grain, bending, bending and tension/compression as well as the strength in shear due to shear force.
The design of structural components at risk of buckling or lateral-torsional buckling is performed according to the Equivalent Member Method and considers the systematic axial compression, bending with and without compressive force as well as bending and tension. Deflection of inner spans and cantilevers is compared to the maximal allowable deflection.
Separate design cases allow for a flexible and stability analysis of members, sets of members, and loads.
Design-relevant parameters such as the stability analysis type, member slendernesses, and limit deflections can be freely adjusted.
