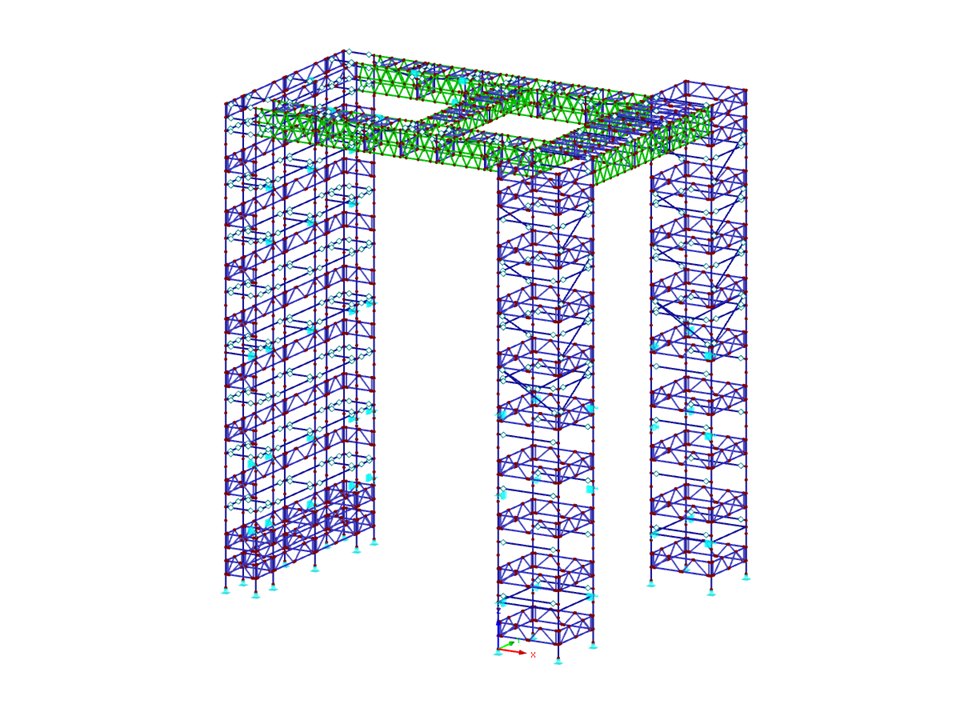

Scaffolding Structure
Number of Nodes | 3400 |
Number of Lines | 5571 |
Number of Members | 5566 |
Number of Load Cases | 6 |
Number of Load Combinations | 7 |
Total Weight | 5.011 tons |
Dimensions | 50.65 x 44.9 x 59.67 feet |
Program Version | 5.24.02 |
Shear walls and deep beams of a building model are available as independent objects in the design add-ons. This allows for faster filtering of the objects in results, as well as better documentation in the printout report.
In the Modal Analysis add-on, you have the option to automatically increase the sought eigenvalues until reaching a defined effective modal mass factor. All translational directions activated as masses for the modal analysis are taken into account.
Thus, it is possible to easily calculate the required 90% of the effective modal mass for the response spectrum method.
The Time History Analysis add-on provides you with accelerograms for the calculation. This extension allows for dynamic structural analysis of the acceleration-time diagrams.
There is an extensive library of earthquake records available for you, but you can also enter or import your own diagrams. The time history analysis is performed using the modal analysis or the linear implicit Newmark analysis.
The building story generator in the Building Model add-on allows you to automatically create building stories, depending on the topology of the model.
