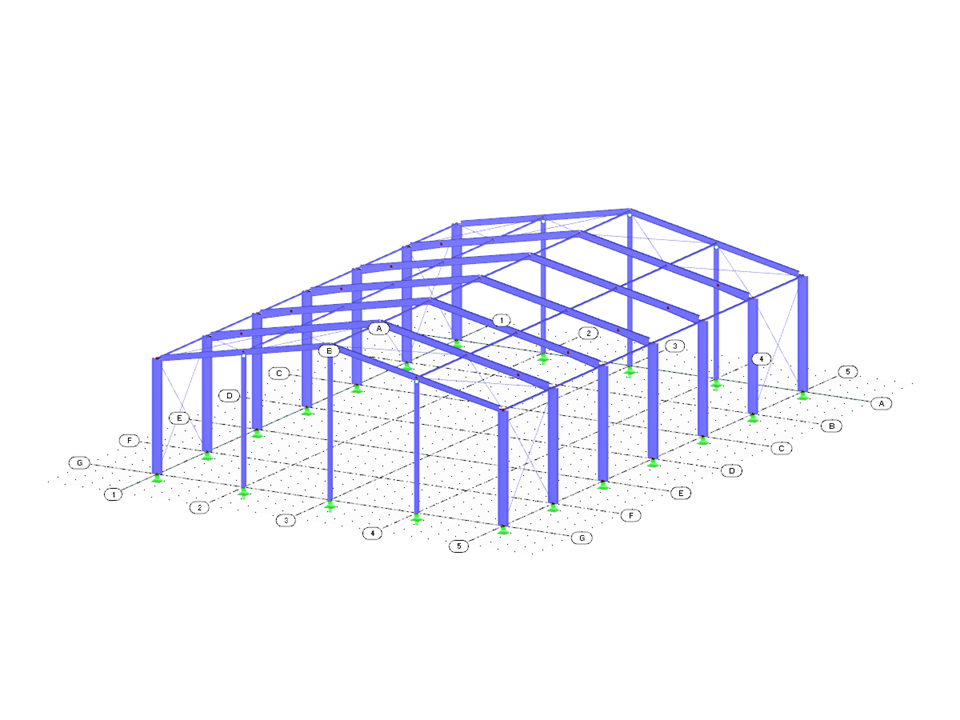

In this model, the adjustment of guidelines in a steel hall is presented in a clear and illustrative way. The length of the guidelines corresponds to the dimensions of the adjustable grid and automatically adjusts whenever the grid is changed. This shows the use of guide objects to simplify the model. The details of the grid configuration allow for precise control of the guideline length.


(0)
0 out of 5 stars
5 star 0
4 star 0
3 star 0
2 star 0
1 star 0

Steel Hall with Guidelines

Number of Nodes 65
Number of Members 112
Total Weight 19,421 t
Dimensions (Metric) 20.742 x 30.742 x 8.371 m
Dimensions (Imperial) 68.05 x 100.86 x 27.46 feet
Program Version 8.24.02

You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
