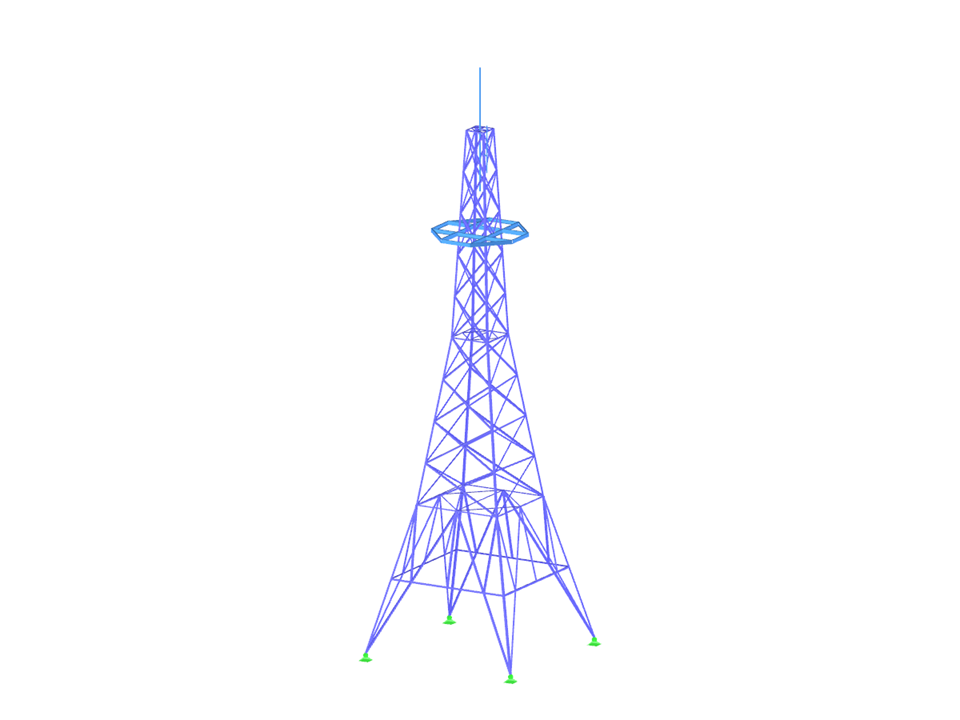

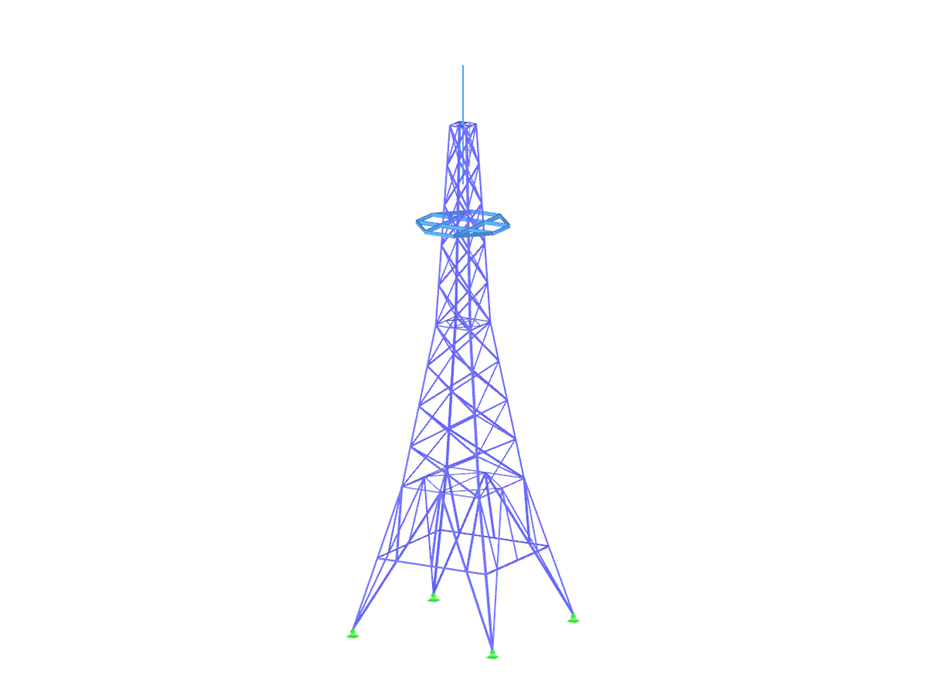

This mast is a vertical structure in the form of a tower. The model provides a comprehensive insight into the design details and structural aspects of a typical mast. Ideally, this structure is designed for applications in the telecommunications or energy supply sector. The model shows the load-bearing capacity and material distribution along the height to cope with wind loads.
Tower
| Number of Nodes | 139 |
| Number of Members | 315 |
| Number of Load Cases | 1 |
| Total Weight | 6,348 t |
| Dimensions (Metric) | 8.642 x 8.642 x 28.400 m |
| Dimensions (Imperial) | 28.35 x 28.35 x 93.18 feet |
| Program Version | 8.24.02 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
