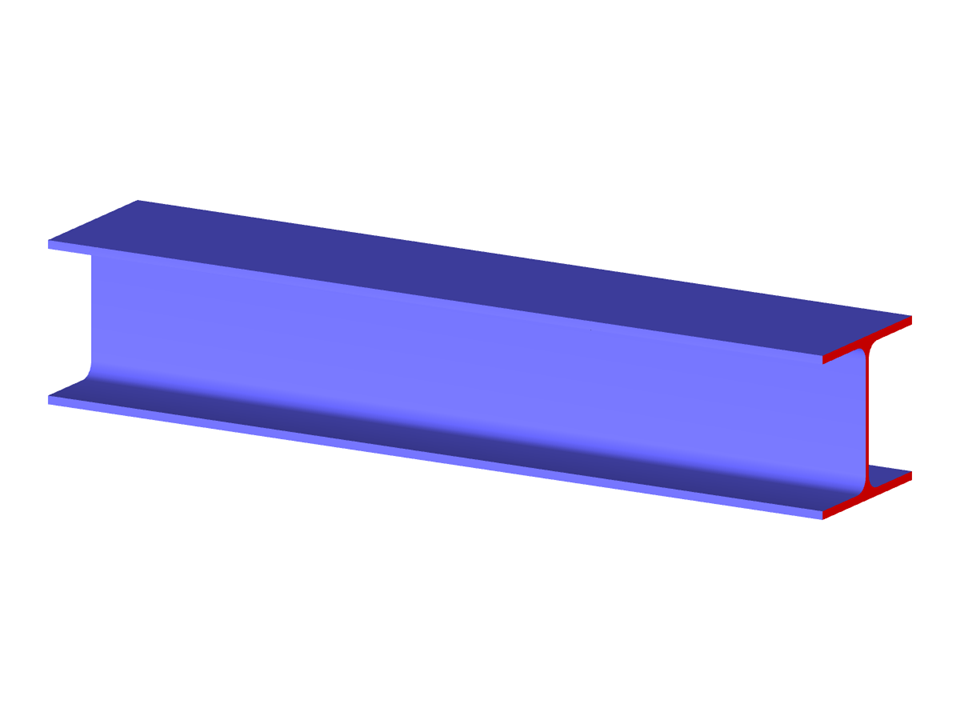

This model is presented in the help section of the add-on module and shows the automatic decomposition of members into surfaces. A steel beam is used to illustrate how members can be efficiently separated and converted into surfaces. The display allows for a practical review of the underlying algorithms and parameterizations. Steel beam, divide member, generate from member, surfaces from member
Model Used in
Steel Beam Surface Division
| Number of Nodes | 2 |
| Number of Lines | 1 |
| Number of Members | 1 |
| Total Weight | 0,042 t |
| Dimensions (Metric) | 1.000 x 0.000 x 0.000 m |
| Dimensions (Imperial) | 3.28 x 0 x 0 feet |
| Program Version | 5.23.02 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
