This model shows how the display size of load vectors can be adjusted quickly in the load shortcut menu. To do this, right-click the load icon and select "Increase Display Size" or "Reduce Display Size" from the menu.
Model Used in

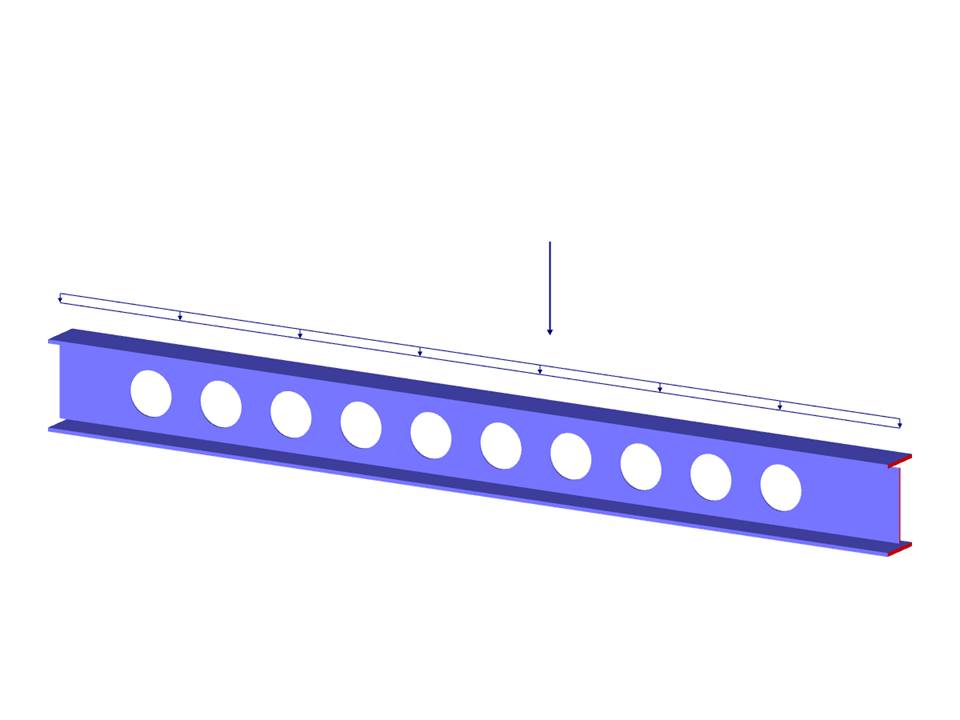

Steel Beam
| Number of Nodes | 2 |
| Number of Lines | 1 |
| Number of Members | 1 |
| Number of Load Cases | 1 |
| Total Weight | 0.978 tons |
| Dimensions (Metric) | 6.000 x 0.000 x 0.000 m |
| Dimensions (Imperial) | 19.69 x 0 x 0 feet |
| Program Version | 5.25.01 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
