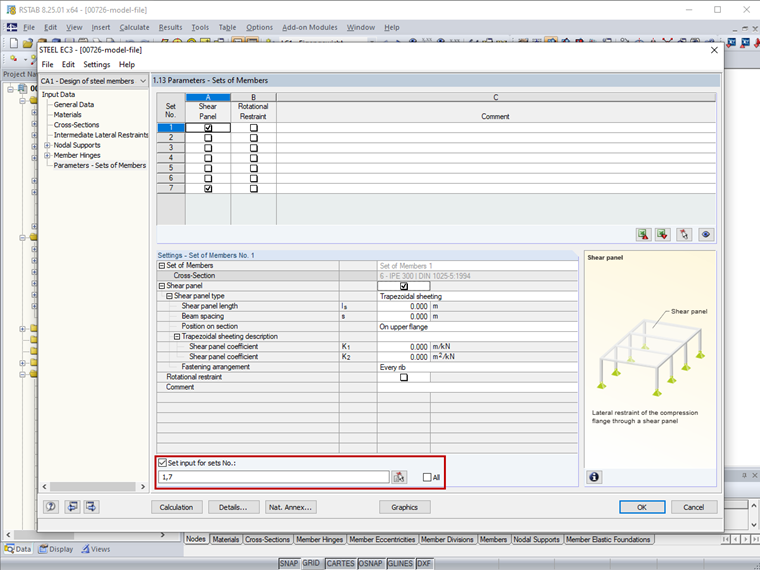

To do this, first activate the "Assign/Set Inputs" check box in the lower part of the Settings table and select the relevant members, sets of members, nodal supports, or member hinges (Image 01).
The subsequent settings are then applied to the selected members, sets of members, nodal supports, or member hinges.
