The model presents an arched hall with curved geometry and membrane elements that show a modern form-finding. The structure emphasizes the efficient implementation of round arch and arch structures. Precise parameters for the use of membranes were taken into account, which are both aesthetically and functionally convincing. The presentation highlights the interaction between flowing shapes and stable structures. Elements of the graphical visualization illustrate the harmonious integration of the shape and load-bearing capacity.


(0)
0 out of 5 stars
5 star 0
4 star 0
3 star 0
2 star 0
1 star 0

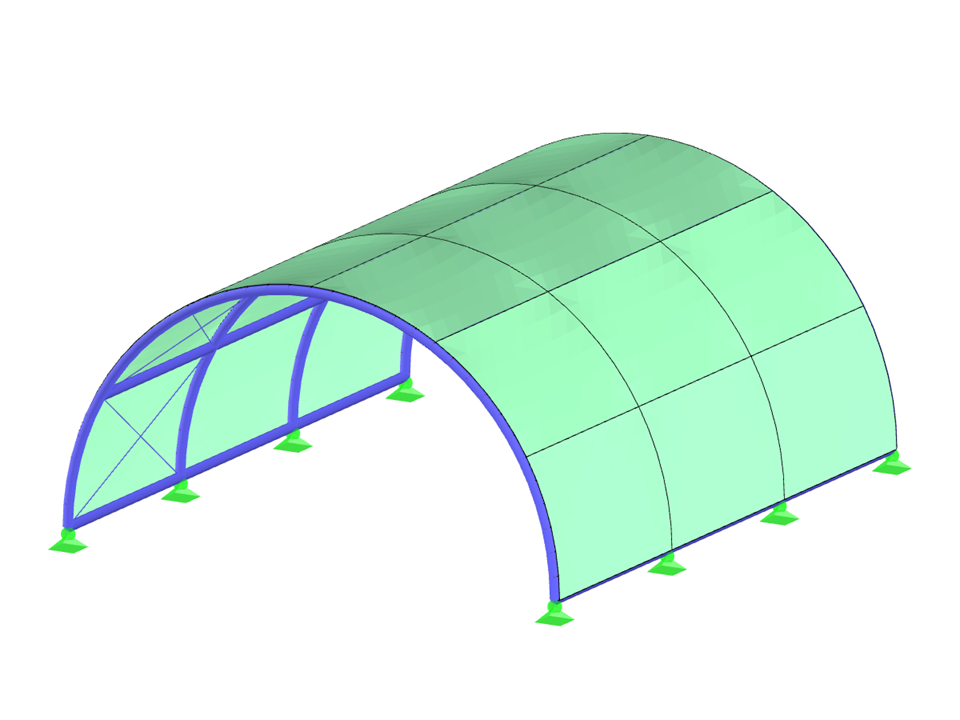

Arched Hall Structure

Number of Nodes 590
Number of Lines 377
Number of Members 332
Number of Surfaces 18
Number of Load Cases 6
Total Weight 7.183 t
Dimensions (Metric) 12.978 x 11.178 x 6.078 m
Dimensions (Imperial) 42.58 x 36.67 x 19.94 feet
Program Version 5.27.00

You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
