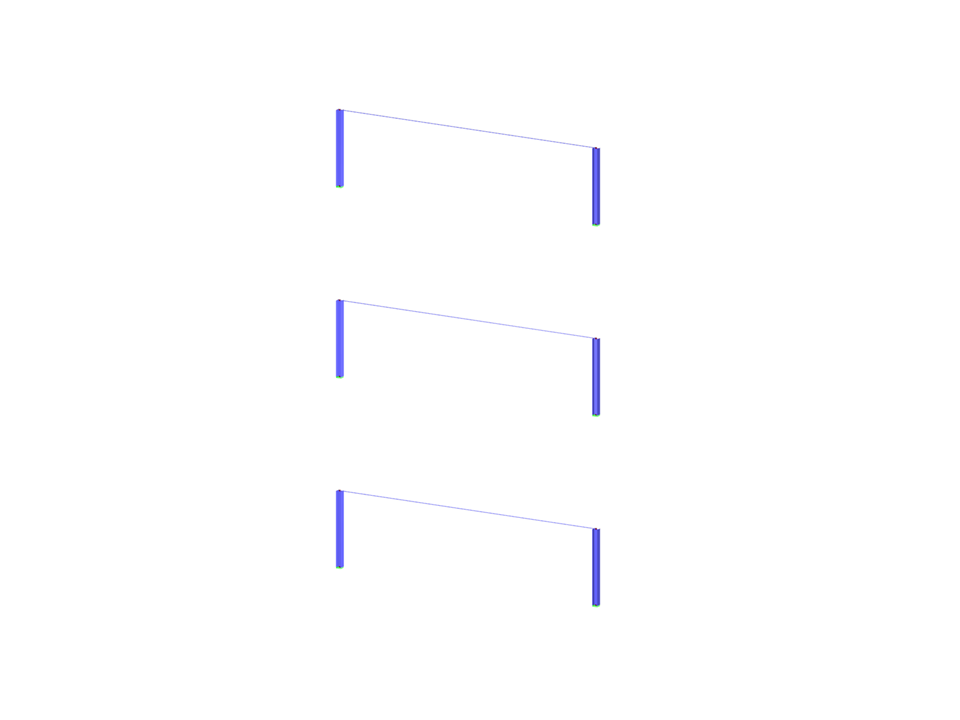

FAQ 005013 | Load Type "End Prestress"
Model Used in
Frame
| Number of Nodes | 12 |
| Number of Lines | 9 |
| Number of Members | 9 |
| Number of Load Cases | 2 |
| Total Weight | 2.379 tons |
| Dimensions (Metric) | 15.148 x 0.148 x 24.074 m |
| Dimensions (Imperial) | 49.7 x 0.49 x 78.98 feet |
| Program Version | 5.26.01 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
