Download the model of a steel platform here and open it with the finite element program RFEM.
This model was used in the free webinar ' New Features in RFEM 6 and RSTAB 9' on May 12, 2022 (Arabic).

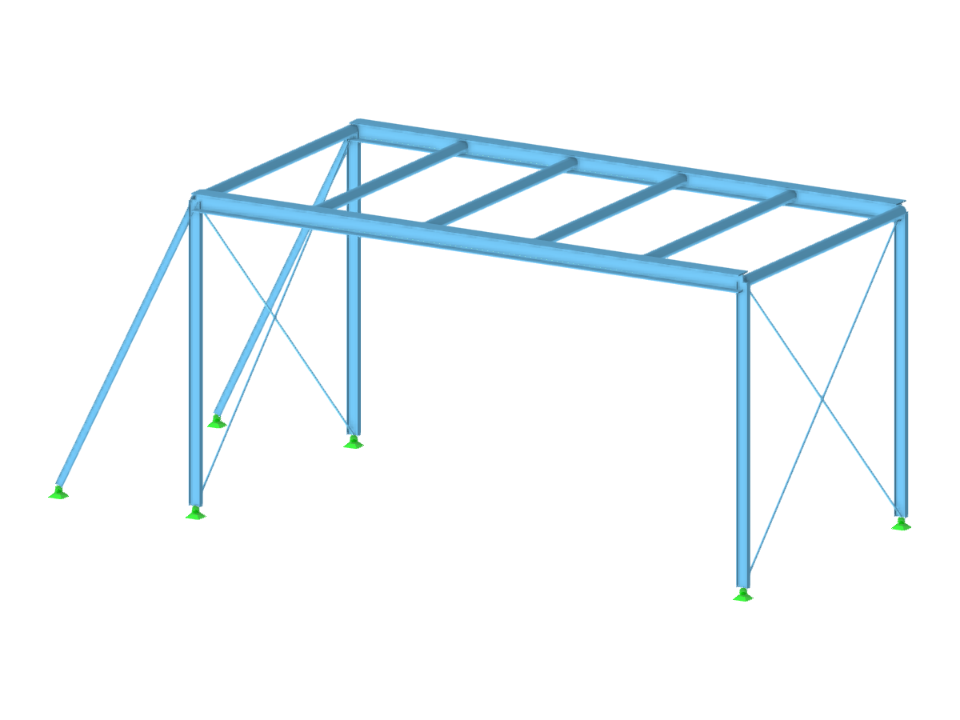

Steel Platform
| Number of Nodes | 18 |
| Number of Lines | 18 |
| Number of Members | 18 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 3.646 tons |
| Dimensions (Metric) | 12.500 x 5.000 x 5.000 m |
| Dimensions (Imperial) | 41.01 x 16.4 x 16.4 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
