Download the model of Ladder with Friction Support here and open it with the finite element program RFEM.
This model will be used in the Free online basic training of the structural FEA software RFEM 6 | Introduction to FEM for students.
- RFEM 6 | Students | Introduction to FEM
- RFEM 6 | Students | Introduction to FEM
- RFEM 6 | Students | Introduction to FEM
- RFEM 6 | Students | Introduction to FEA
- RFEM 6 | Students | Introduction to FEM
- RFEM 6 | Students | Introduction to FEA
- RFEM 6 | Students | Introduction to FEM
- RFEM 6 | For Students | Introduction to FEA
- RFEM 6 | For Students | Introduction to FEM
- RFEM 6 for Students | Introduction to FEM | Mai 4, 2023
- RFEM 6 for Students | Introduction to FEM | November 8, 2023
- RFEM 6 for Students | Introduction to FEM | Apr 24, 2024

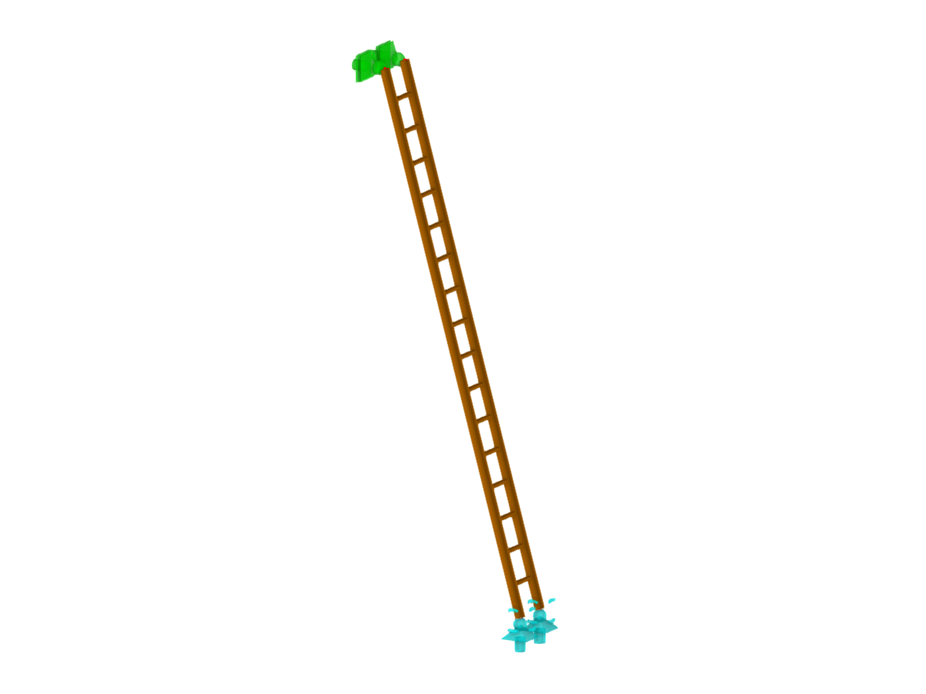

Ladder with Friction Support
| Number of Nodes | 36 |
| Number of Lines | 18 |
| Number of Members | 18 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 16 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.030 tons |
| Dimensions | 4.6 x 16.09 x 1.15 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
General
Using the "Beam Panel" thickness type, you can model timber panel elements in 3D space. You just specify the surface geometry and the timber panel elements are generated using an internal member-surface construct, including the simulation of the connection flexibility.
You have the option to perform the fire resistance design of surfaces using the reduced cross-section method. The reduction is applied over the surface thickness. It is possible to perform the design checks for all timber materials allowed for the design.
For cross-laminated timber, depending on the type of adhesive, you can select whether it is possible for individual carbonized layer parts to fall off, and whether you can expect increased charring in certain layer areas.
.png?mw=512&hash=4e74affa9ad0c7b703151c5085ac9b8e59171c23)
Among others, the following cross-laminated timber manufacturers are available in the layer structure library:
- Binderholz (USA)
- KLH (USA, CAN)
- Kalesnikoff (USA, CAN)
- Nordic Structures (USA, CAN)
- Mercer Mass Timber
- SmartLam
- Sterling Structural
- Superstructures listed in Lignatec Edition 32 "Cross-Laminated Timber of Swiss Production"
By importing a structure from the layer structure library, all relevant parameters are adopted automatically. The library is continually updated.
