Download the model of Continuous Plate here and open it with the finite element program RFEM. This model will be used in the Free online basic training of the structural FEA software RFEM 6 | Introduction to FEM for students.

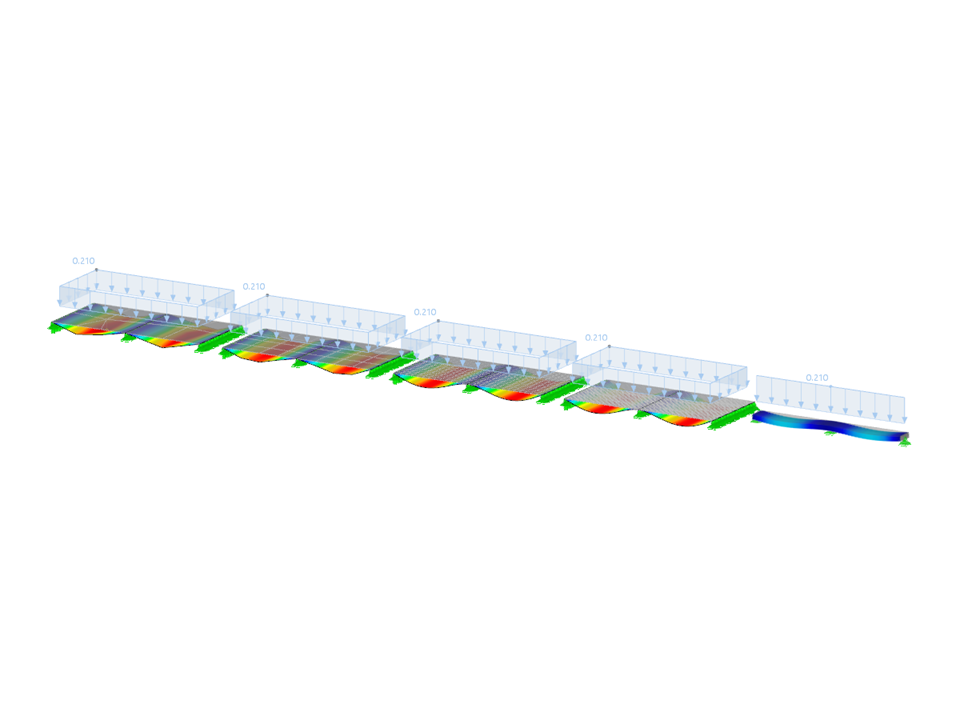

Continuous Plate
| Number of Nodes | 27 |
| Number of Lines | 21 |
| Number of Members | 1 |
| Number of Surfaces | 4 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 140.737 tons |
| Dimensions | 180 x 0 x 16 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
