Reinforced concrete building on floor model
Model to Download
Description

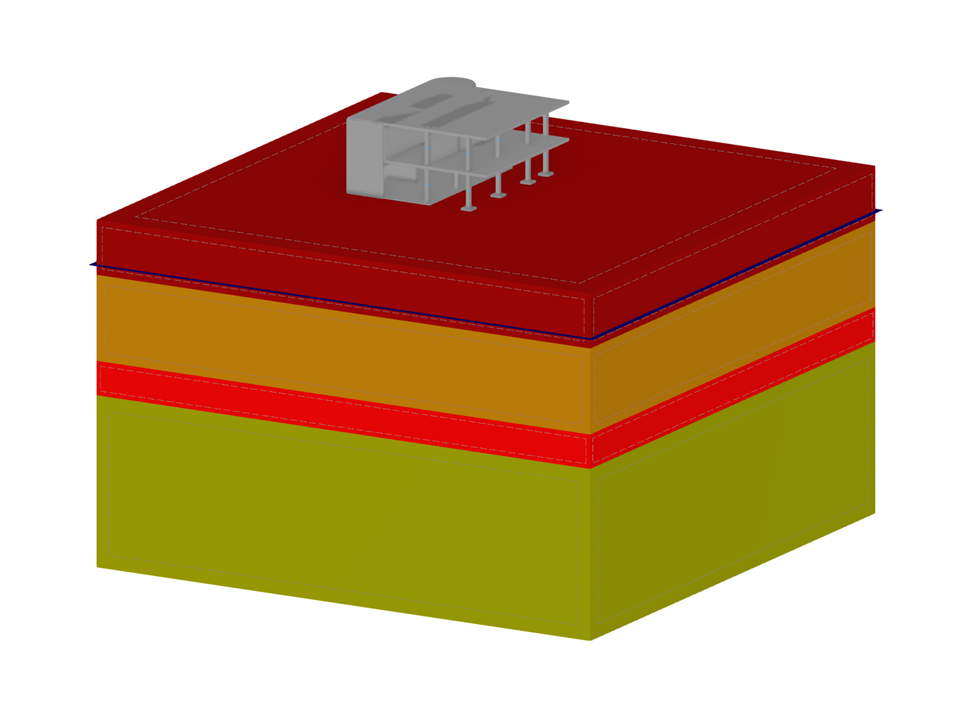

Download the model of a reinforced concrete building on the floor model here and open it with the finite element program RFEM.
This model will be used in the free webinar "Geotechnical Analysis with Construction Stages in RFEM 6" on November 30, 2022 (German, October 1, 2022, English).
Model Used in
Keywords
Reinforced concrete Reinforced concrete building Soil model
Write Comment...
Write Comment...
- Views 143x
- Downloads 15x
- Updated 1 December 2022
- Number of Nodes 105
- Number of Lines 140
- Number of Members 28
- Number of Surfaces 48
- Number of Solids 4
- Number of Load Cases 4
- Number of Load Combinations 3
- Number of Result Combinations 0
- Total Weight 128806.800 t
- Dimensions 49.000 x 36.800 x 49.000 m
Disclaimer
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
