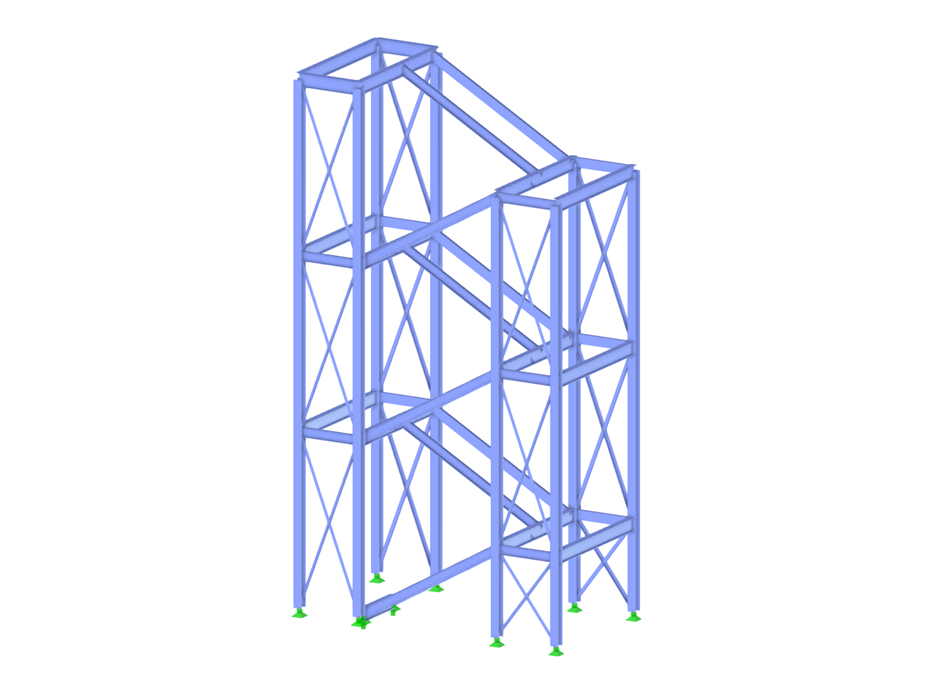

Steel Staircase Tower
| Number of Nodes | 56 |
| Number of Lines | 107 |
| Number of Members | 107 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 6 |
| Number of Load Combinations | 32 |
| Number of Result Combinations | 0 |
| Total Weight | 9.679 tons |
| Dimensions | 21.33 x 39.37 x 11.15 feet |
