Online Manual RFEM | Surfaces

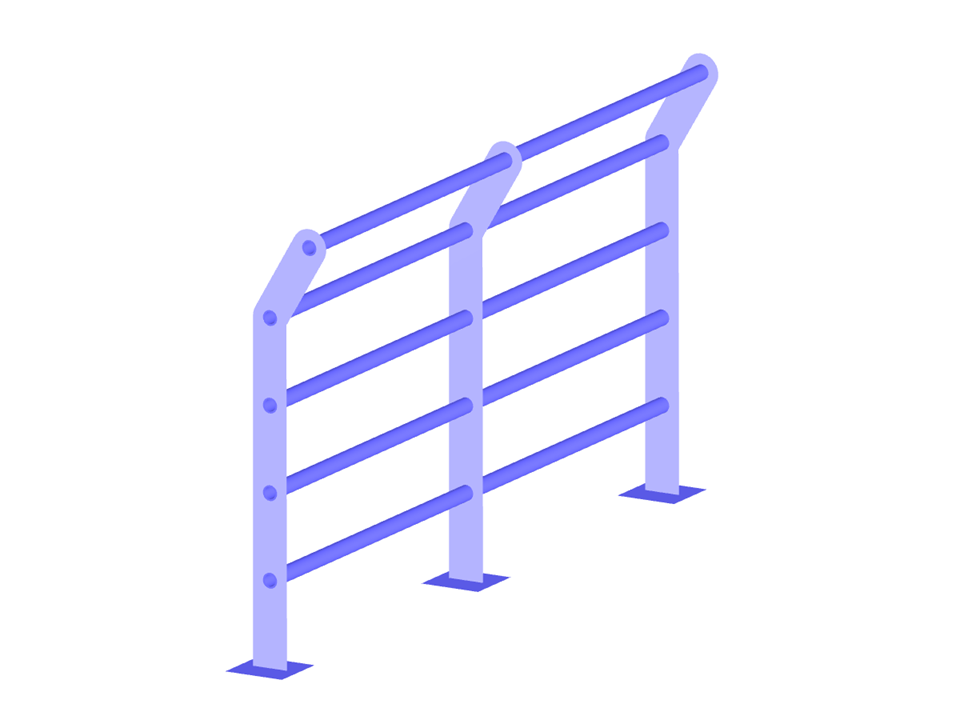

Parameterization of the geometry of a metal railing modeled as bars and surfaces. Surface finite element mesh refinement.
Model created by the Dlubal Latam engineering team. The model is also available as a parameterized block on the Dlubal Latam website.
Metal Railing
| Block parameters editable dynamically | |
| Number of Nodes | 102 |
| Number of Lines | 61 |
| Number of Members | 10 |
| Number of Surfaces | 21 |
| Total Weight | 0.134 tons |
| Dimensions | 0.98 x 8.53 x 4.63 feet |
| Program Version | 5.29.01 |
