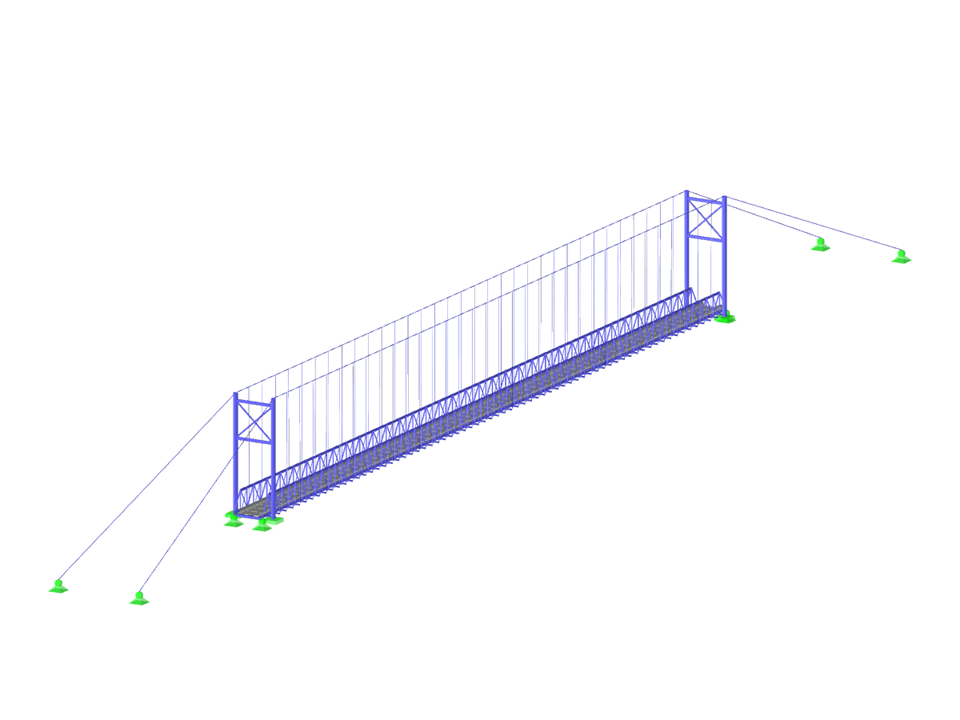

Parameterization of the geometry of a suspension bridge consisting of a concrete deck, steel profile structure, suspended on a series of cables with supports at the ends.
Model created by the Dlubal Latam engineering team. The model is also available as a parameterized block on the Dlubal Latam website.
Suspension Bridge
| Block parameters editable dynamically | |
| Number of Nodes | 717 |
| Number of Lines | 993 |
| Number of Members | 992 |
| Number of Surfaces | 70 |
| Number of Load Cases | 1 |
| Total Weight | 60.086 tons |
| Dimensions | 20.52 x 322.35 x 26.66 feet |
| Program Version | 5.28.01 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
