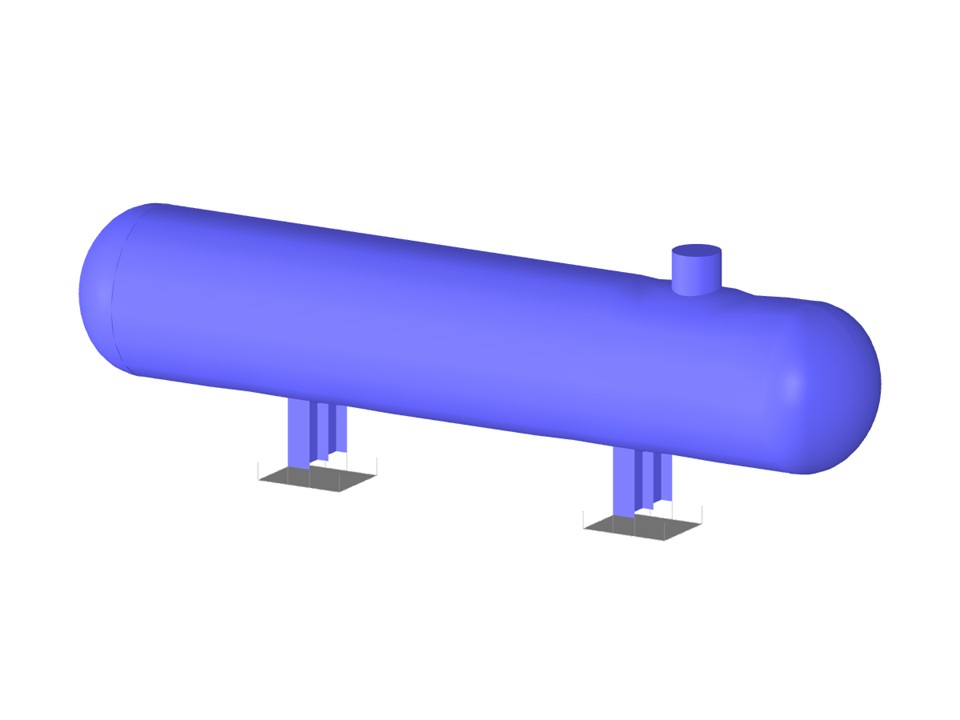

Parameterization of the geometry of a steel tank with metal legs, including internal pressure loads.
Model created by the Dlubal Latam engineering team. The model is also available as a parameterized block on the Dlubal Latam website.
Pressure Vessel
| Block parameters editable dynamically | |
| Number of Nodes | 88 |
| Number of Lines | 77 |
| Number of Surfaces | 27 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 4 |
| Number of Result Combinations | 2 |
| Total Weight | 13.979 tons |
| Dimensions | 25.89 x 9.49 x 9.47 feet |
| Program Version | 5.26.02 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
