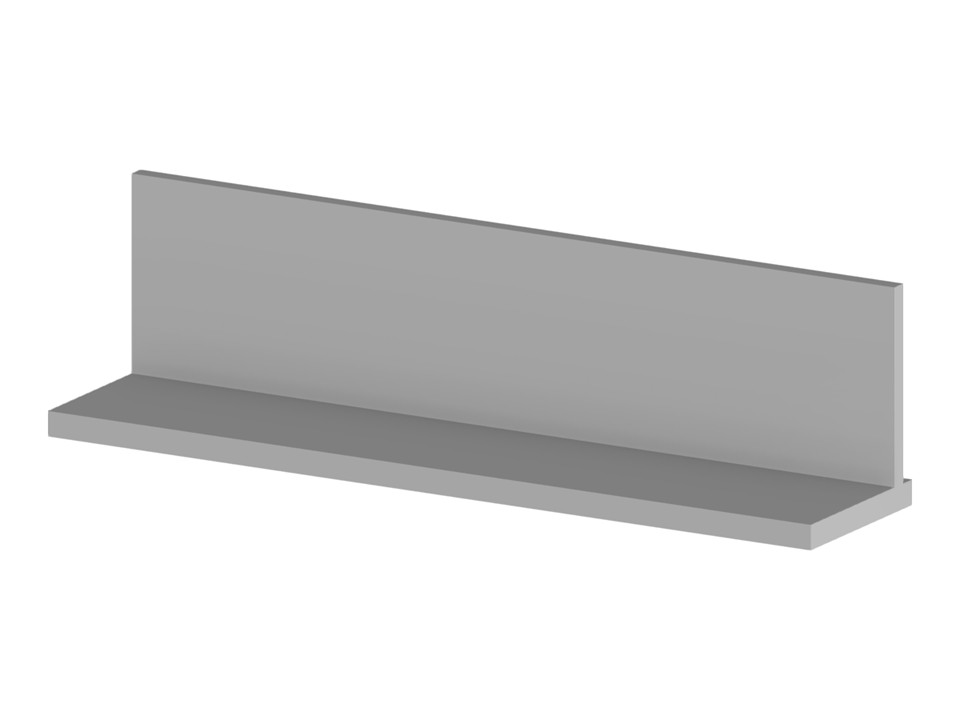

Parameterization of the concrete cantilever retaining wall with steel reinforcement, including elastic constants of the soil.
A model created by the Dlubal Latam engineering team. The model is also available as a parameterized block on the Dlubal Latam website.
Cantilever Retaining Wall
| Block parameters editable dynamically | |
| Number of Nodes | 8 |
| Number of Lines | 8 |
| Number of Members | 0 |
| Number of Surfaces | 2 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 27.449 tons |
| Dimensions | 32.81 x 8.2 x 7.55 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
