Download the model of a railing column here and open it with the structural FEA software RFEM 6.
This model is used in the webinar "Analysis of Surface and Solid Models with RFEM 6" on November 29, 2023.

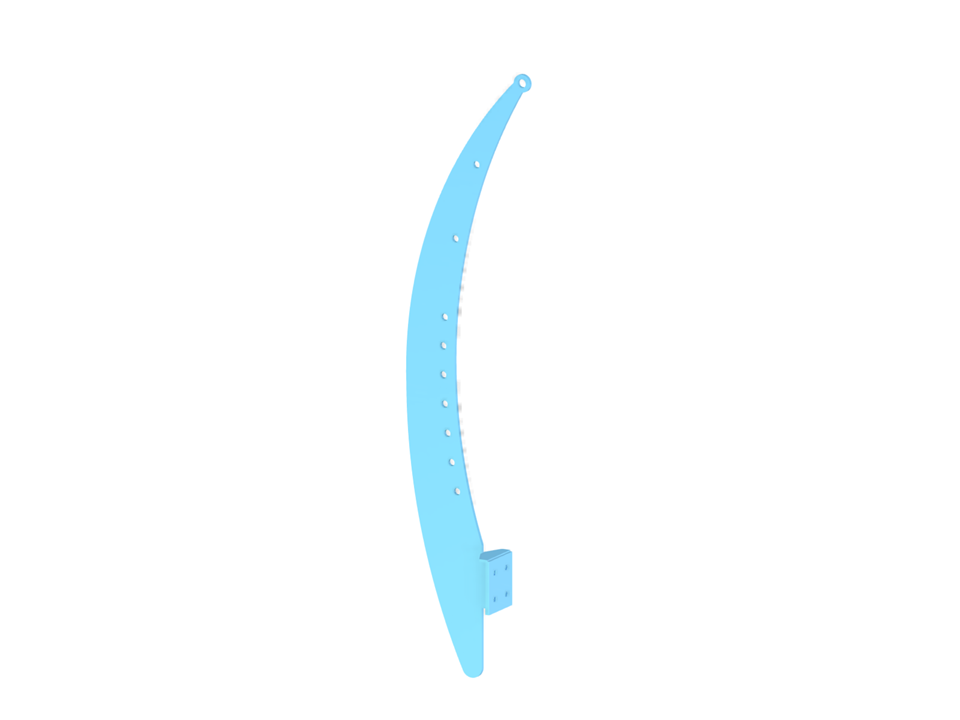

Railing Column
| Number of Nodes | 139 |
| Number of Lines | 129 |
| Number of Members | 0 |
| Number of Surfaces | 6 |
| Number of Solids | 0 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 2 |
| Number of Result Combinations | 0 |
| Total Weight | 0.010 tons |
| Dimensions | 1.02 x 4.49 x 0.33 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
