Download the model of an anchor plate with flat washers here and open it with the structural FEA software RFEM 6.
This model is used in the webinar "Analysis of Surface and Solid Model with RFEM 6" on November 29, 2023.

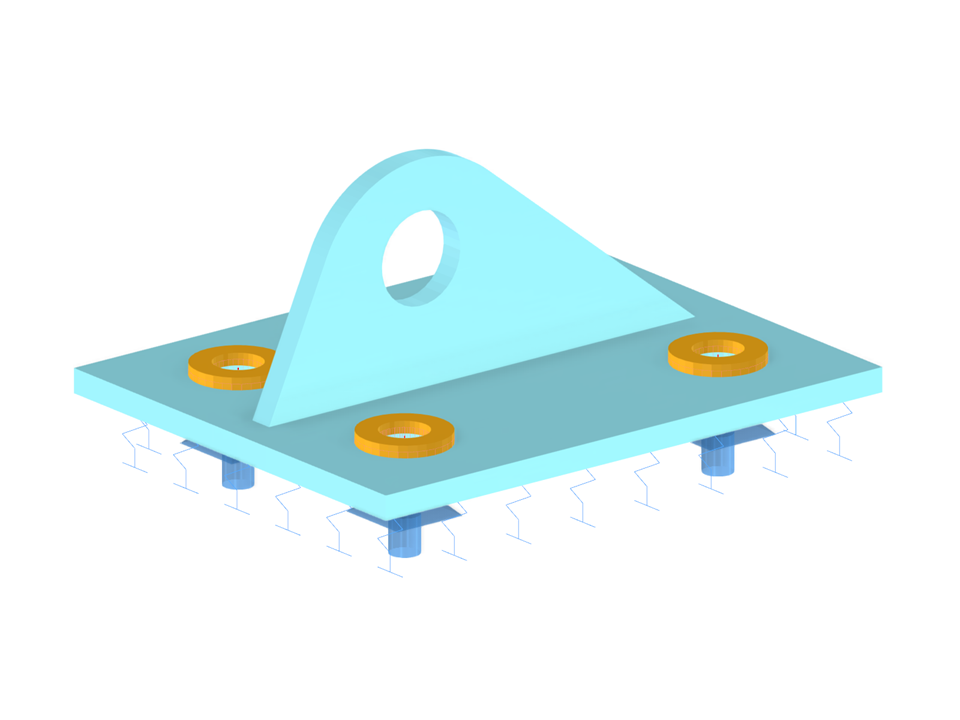

Anchor Plate with Flat Washers
| Number of Nodes | 31 |
| Number of Lines | 25 |
| Number of Members | 4 |
| Number of Surfaces | 15 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 1 |
| Number of Result Combinations | 0 |
| Total Weight | 0.002 tons |
| Dimensions | 0.49 x 0.33 x 0.62 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
