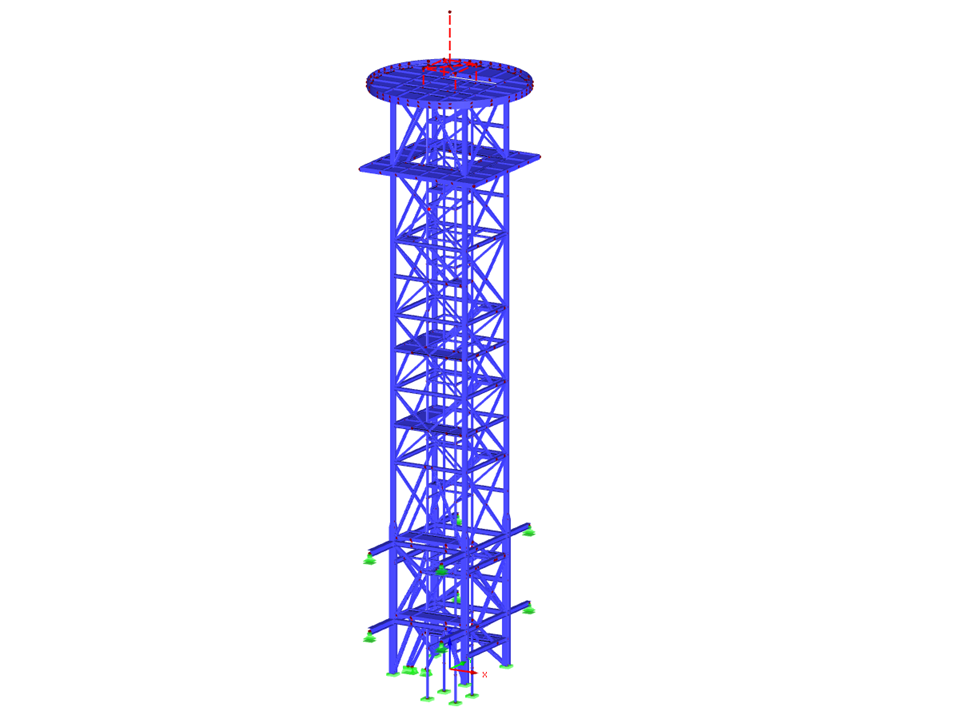

Radar Tower at Malaga Airport, Spain
No Download Possible
Customer Project / for View Only
| Number of Nodes | 547 |
| Number of Lines | 949 |
| Number of Members | 874 |
| Number of Surfaces | 36 |
| Number of Load Cases | 4 |
| Number of Load Combinations | 18 |
| Number of Result Combinations | 2 |
| Total Weight | 47.193 tons |
| Dimensions | 26.74 x 29.99 x 115.87 feet |
| Program Version | 5.34.01 |
