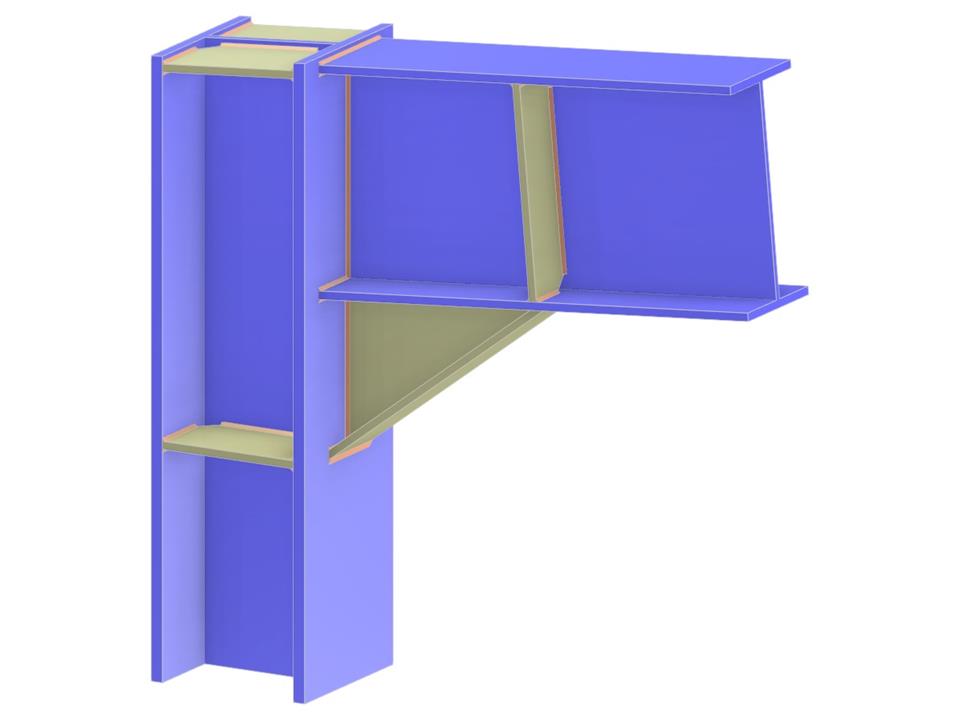

This model demonstrates a welded beam-to-column-flange connection featuring a haunch, beam stiffener, and column stiffener, designed as a fixed beam joint. Complex geometries provide enhanced structural integrity, with welded joints ensuring robust linkage. Suitable for high-load applications, this model exemplifies advanced engineering design techniques.
Beam to Column Flange Connection with Haunch
| Number of Nodes | 3 |
| Number of Lines | 2 |
| Number of Members | 2 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.075 tons |
| Dimensions (Metric) | 0.727 x 0.724 x 0.000 m |
| Dimensions (Imperial) | 2.39 x 2.38 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
